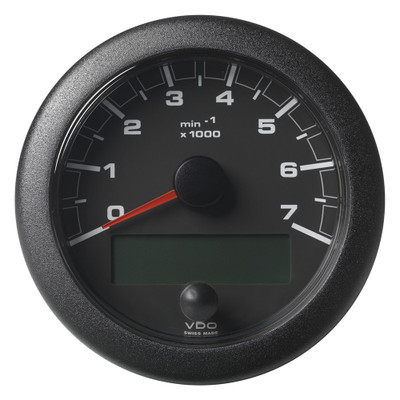

Veratron OceanLink 3-3/8 Inch NMEA 2000 Tachometer

(0) Write a Review
UPC 7640178720985
Availability In Stock
UPC:
7640178720985
MPN:
A2C1065810001
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$287.19
MSRP: $319.10
Only 2 left in stock

Fast shipping from Georgia

Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Condition:
New
Shipping:
$5.95 flat rate per order

Options

$287.19
MSRP: $319.10
Or
Secure checkout Protected payments

Description

The Veratron OceanLink Tachometer reads engine RPM up to 7000 while automatically pulling in and displaying additional key data, like oil pressure, fuel consumption, and operating hours, on a large inverted dot matrix digital readout built into the dial.

Beyond its NMEA 2000 certified and SAE J1939 CAN interface, this tachometer includes two analog sensor inputs, so it works whether a boat's engine data comes over a modern digital network or through traditional analog wiring. The proprietary EasyLink data connection makes wiring additional satellite instruments straightforward and cost effective, with connected gauges receiving fresh data every 20 milliseconds for genuinely real-time readings.

Housed in a black dial and bezel with a 3-3/8 inch (85mm) diameter to fit standard panel cutouts, this tachometer carries an IPX5 protection rating and a -20C to 70C operating range for reliable performance in an open helm. Reverse polarity protection guards against wiring mistakes during installation. Browse more marine instruments and gauges at CritPro.

Key Features: diameter: 3-3/8 inch (85mm), max rpm: 7000, dial color: Black, nmea 2000: Yes, j1939: Yes, analog inputs: 2, protection rating: IPX5, voltage: 12/24V, operating temperature: -20 to 70 C.

Frequently Asked Questions

What size is this gauge? 3-3/8 inch (85mm).

What is the waterproof rating? IPX5.

What voltage does it run on? 12/24V.

Specifications

MPN:
A2C1065810001
Gauge Diameter:
3-3/8 inch (85mm)
Max RPM:
7000
Dial Color:
Black
NMEA 2000:
Yes
J1939:
Yes
Analog Inputs:
2
Protection Rating:
IPX5
Voltage:
12/24V
Operating Temperature:
-20 to 70 C
Prop 65 Warning:
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
Return Policy:
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
