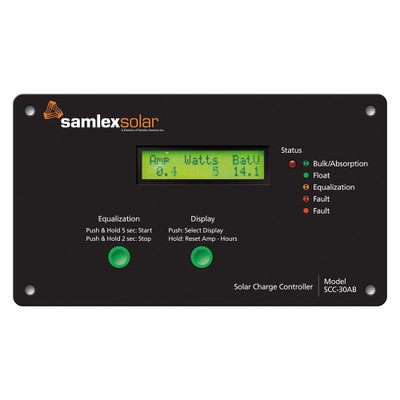

Samlex 30A Flush Mount Solar Charge Controller

The Samlex 30A Flush Mount Solar Charge Controller regulates charging current between a solar array and the battery bank while providing system information on its built-in LCD display. It supports both 12V and 24V systems and uses pulse-width-modulated charging for controlled battery management. The 30-amp rating makes it suitable for solar installations that fall within the controller's current limits.

Charging is handled through four stages: bulk, absorption, float, and manual or automatic equalization. Eight selectable charging profiles allow the controller to be configured for different battery types, while LED indicators and the digital display show operating parameters and fault information. An optional battery temperature sensor can be added when temperature-compensated charging is needed.

The flush-mount body measures approximately 7.5 x 4.25 x 1.5 in, which helps when planning space in a panel or cabinet. Samlex lists applications including boats, RVs, service vehicles, field work, telecommunications, mobile offices, and construction sites. Before installation, the array current, battery-bank voltage, battery type, and mounting location should all be confirmed against the system design. Explore more camp accessories.

• 30A PWM controller for 12V or 24V solar charging systems
• Four-stage charging with bulk, absorption, float, and equalization
• Eight selectable battery charging profiles with LCD system monitoring
• Optional battery temperature sensor supports temperature-compensated charging
