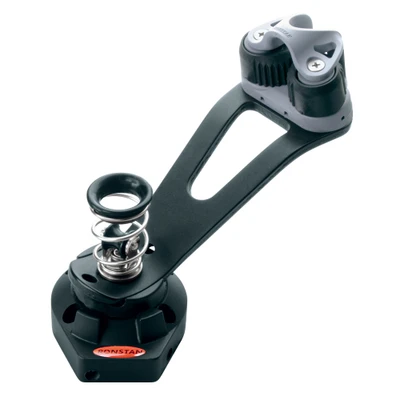

Ronstan Ball Bearing Swiveling Cam Cleat Base

The Ronstan Ball Bearing Swiveling Cam Cleat Base is built for mainsheet systems that need a cam cleat arm with low-friction rotation, adjustable height, and controlled travel. The arm height can be adjusted to suit the preferred cleating angle, which is useful when the base is installed on different cockpit or deck layouts. Twin ball-bearing races support the arm so it rotates with less friction than a plain pivot. An adjustable ratchet system also keeps the arm from simply dropping to leeward when the boat heels or the sheet goes slack.

Rotation is limited to 260 degrees as supplied, helping keep the cleat from swinging into unwanted areas of the cockpit. The molded stop can be removed when a full 360-degree range is preferred for the installation. A 5mm fork-fitting pin allows direct attachment to compatible block head posts, including traditional post-and-shackle blocks and Dyneema-link Orbit blocks. Alloy arms, a fiber-reinforced nylon base, and Grade 316 stainless fittings balance low weight with the stiffness needed at a working mainsheet cleat.

• Height-adjustable cleat arm
• Twin ball-bearing races reduce rotation friction
• Adjustable ratchet helps control arm position
• Rotation stop can be modified for full-circle travel

Ronstan lists the base for mainsheet systems on dinghies and sportboats up to 8m, where the crew may trim from several positions. Set the height and rotation limits before finalizing the sheet lead so the line enters the cleat naturally under load. The bearing races and moving stops should be kept clean and checked periodically, especially after heavy saltwater use. For related mainsheet cleats, swivel bases, and sailing hardware, browse more Sailing Hardware.
