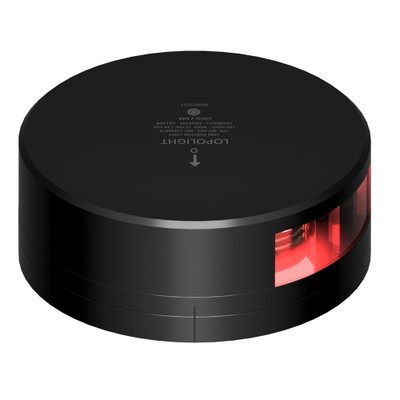

Lopolight 2NM Black FB Base Red Port Light

The Lopolight FB Base port light provides a 2 nautical mile side-navigation range in a compact horizontal fixture. It is specified for vessel groups under 12 m, 12 to 20 m, and 20 to 50 m. The FB base centers the cable beneath the light and helps create a clean, reduced-profile installation.

The base can be mounted with deck screws from above or secured from below when the structure allows access. A 2.5 m shielded marine-grade cable comes pre-connected to the fixture for routing into the vessel. The housing measures approximately 92.5 mm in diameter by 36 mm high.

Construction combines anodized aluminum, a PMMA lens, A4 stainless steel screws, epoxy, and polyurethane. The fixture is specified for -25°C to 55°C operation and draws approximately 90 mA at 12V or 50 mA at 24V. Lopolight includes the pre-cabled light and installation guide, and the product carries approvals including COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR.

• 2 nautical mile side-light range
• 2.5 m factory-attached cable
• Low-profile horizontal FB Base
• Approximate 92.5 x 36 mm housing
• Two available mounting methods
