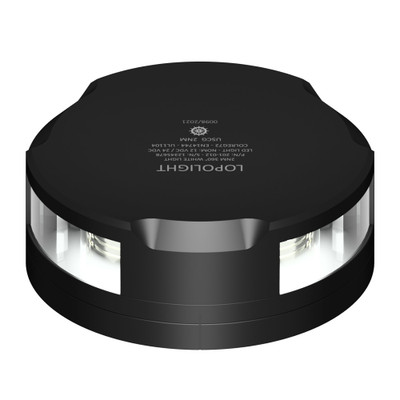

Lopolight 2NM Black FB Base 360° Anchor Light

The Lopolight FB Base 360-degree anchor light provides all-around anchor visibility from a compact horizontal fixture. Its 2 nautical mile range is specified for vessel categories under 12 m, 12 to 20 m, and 20 to 50 m. The FB base keeps the wiring centered beneath the light for a cleaner deck or pole-style installation.

Installers can screw the base down from the deck side or fasten it from below, depending on access and vessel construction. The light arrives with a 0.75 m shielded marine-grade cable already connected. Its body measures approximately 92.5 mm in diameter by 36 mm high, keeping the profile low.

The assembly uses anodized aluminum, a PMMA lens, A4 stainless steel screws, epoxy, and polyurethane. Operating temperature is specified from -25°C to 55°C, with current draw of about 167 mA at 12V and 110 mA at 24V. The package includes the light and installation guide, and listed approvals include COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR.

• 2 nautical mile all-around visibility
• FB Base centers wiring beneath the fixture
• 0.75 m pre-connected marine cable
• Approximate 92.5 x 36 mm housing
• Two mounting approaches for deck installation
