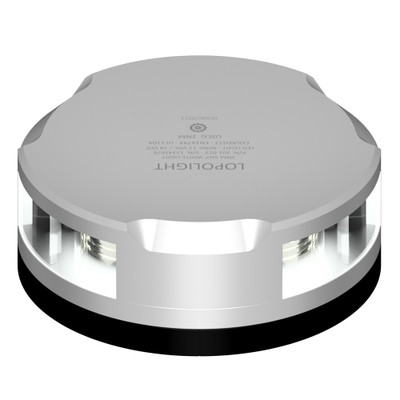

Lopolight 2NM Silver FB Base 360° Anchor Light

The Lopolight FB Base 360-degree anchor light is designed for a low-profile horizontal installation. It provides a 2 nautical mile all-around anchor-light range and is specified across vessel groups under 12 m, 12 to 20 m, and 20 to 50 m. The FB base centers the wiring beneath the fixture to support clean pole-style or deck installations.

The base can be secured from above with deck screws or mounted from below, allowing the installer to choose the method that best fits the structure. A 0.75 m shielded marine-grade cable is pre-connected to the light for routing into the vessel. The compact fixture measures about 92.5 mm in diameter by 36 mm high.

Construction combines anodized aluminum, a PMMA lens, A4 stainless steel screws, epoxy, and polyurethane. The light is rated for operation from -25°C to 55°C and draws approximately 167 mA on a 12V system or 110 mA on a 24V system. The package includes the pre-cabled light and installation guide, and approvals include COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR.

• 2 nautical mile all-around visibility
• Low-profile horizontal FB Base
• 0.75 m shielded marine-grade cable
• Approximate dimensions of 92.5 x 36 mm
• Deck or from-below mounting capability
