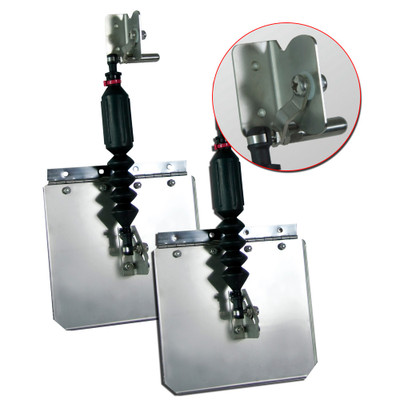

Lectrotab Smart Tabs Pro Troller Trim Tabs - 80-175 HP

The Lectrotab Smart Tabs Pro Troller Series is a fully automatic, self-adjusting trim tab that requires no switches, no hydraulics, and no operator adjustment while underway. It is designed for 17'-20' boats with 80-175 HP to reduce planing speed, improve fuel economy, and smooth the ride without any pilot interface.

A nitrogen gas actuator holds the trim plate down during acceleration, providing lift at the stern until water pressure exceeds the actuator's load rating, at which point the tabs rise to horizontal and drag disappears automatically. A simple lever switches the plates between two jobs: in the down position, they drop to create equal braking on both sides for straight tracking at ultra-low trolling speeds, without restricting the propeller the way other trolling brake systems can. Flip the lever up and you're back to fully automatic trim tab performance. Installation requires only a drill, a 3/16-inch bit, and a Phillips screwdriver, with no through-hull drilling and all mounting hardware, instructions, and templates included. Browse more options in our trim tabs and trim systems category.

Key Features

• Fully automatic operation with no switches or hydraulics.
• Nitrogen gas actuator self-adjusts to speed and load.
• Reduces minimum planing speed by up to 33%.
• Improves fuel economy and handling.
• Acts as a boat stabilizer while cruising.
• No through-hull drilling required.

Additional Details: Function: Trim Tab and Trolling Brake; Weight: 6.05 lb.

Frequently Asked Questions

What boat size and horsepower is this built for? 17'-20' boats with 80-175 HP.

Does this trim tab require any switches or wiring? No, it's fully automatic with no hydraulics or electric switches required.

How long does installation take? Most owners can install it in under an hour with just a drill, a 3/16-inch bit, and a Phillips screwdriver.
