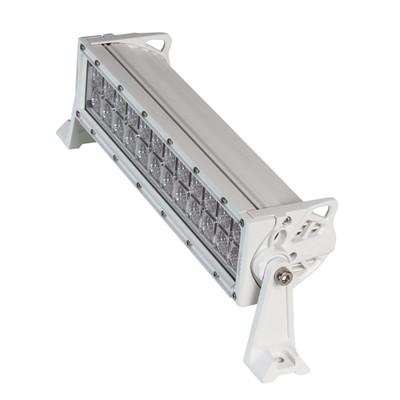

Heise 14 Inch Dual Row 72W Marine LED Light Bar

(0) Write a Review
UPC 086429312894
Availability In Stock
UPC:
086429312894
MPN:
HE-MDR14
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$308.99
MSRP: $343.99
Fast shipping from Georgia
✓ Ships within 1 Business Day
✓ Trusted by 28,000+ customers
✓ Authorized Dealer
✓ 30 Day Hassle-Free Returns
Condition: New
Shipping: $5.95 Flat Rate (Per Order)

Options

$308.99
MSRP: $343.99
Only 3 left in stock
Or
✓Ships within 1 business day
✓Fast shipping from Georgia
✓Quality gear since 2001
✓Secure checkout

Description

The Heise Dual Row Marine LED Light Bar packs 24 CREE LEDs at 3W each into a 14" die-cast aluminum housing, putting out 72W and 5400 raw lumens at a 6000K color temperature. A combo beam pattern blends a 90 degree flood with an 8 degree spot, giving wide area coverage along with extra reach for spotting farther distances on the water.

The white coated housing includes UV inhibitors to resist fading and degradation from sun exposure, while a Gore membrane and PC lens keep the internals protected. Integrated, epoxy-encapsulated electronics and stainless 316 hardware are built to handle the marine environment, backed by an IP68 rating and reverse polarity protection.

Running on 10-30V DC input, the light bar draws 3.7 amps at 13.8 volts and operates reliably from -40°C to +60°C. Die-cast aluminum mounting brackets offer 13.50" hole spacing turned inward or 14.75" turned outward, with a 0.25in mounting bolt drill size. Browse more in our marine lighting category.

Key Features: 72W output (24x 3W CREE LEDs), 5400 raw lumens, 6000K color temperature, combo flood (90°) / spot (8°) beam pattern, die-cast aluminum housing with UV-resistant white coating, IP68 rated, reverse polarity protection, stainless 316 hardware.

Frequently Asked Questions

How bright is this light bar? It puts out 5400 raw lumens at 72W, using 24 CREE LEDs.

What beam pattern does this light bar use? It uses a combo pattern with a 90 degree flood and an 8 degree spot.

Is this light bar waterproof? Yes, it carries an IP68 rating and uses a Gore membrane for marine environments.

Specifications

Type:
Marine LED Light Bar
Brand:
Heise
Model:
HE-MDR14
Size:
14 inches
Input Voltage:
10-30V DC
Wattage:
72W (24x 3W CREE LEDs)
Raw Lumens:
5400
Color Temperature:
6000K
Beam Pattern:
Combo / Flood (90°) / Spot (8°)
Housing Material:
Die-Cast Aluminum, White Coated with UV Inhibitors
Lens Material:
PC
Membrane:
Gore
Mounting Bracket:
Die-Cast Aluminum
Hole Spacing:
13.50in Inward / 14.75in Outward
Mounting Bolt Drill:
0.25in
Hardware:
Stainless 316
Operating Temperature:
-40°C to +60°C
Current Draw:
3.7A @ 13.8V
IP Rating:
IP68
Protections:
Reverse Polarity
Weight:
5.20 lbs

Description

The Heise Dual Row Marine LED Light Bar packs 24 CREE LEDs at 3W each into a 14" die-cast aluminum housing, putting out 72W and 5400 raw lumens at a 6000K color temperature. A combo beam pattern blends a 90 degree flood with an 8 degree spot, giving wide area coverage along with extra reach for spotting farther distances on the water.

The white coated housing includes UV inhibitors to resist fading and degradation from sun exposure, while a Gore membrane and PC lens keep the internals protected. Integrated, epoxy-encapsulated electronics and stainless 316 hardware are built to handle the marine environment, backed by an IP68 rating and reverse polarity protection.

Running on 10-30V DC input, the light bar draws 3.7 amps at 13.8 volts and operates reliably from -40°C to +60°C. Die-cast aluminum mounting brackets offer 13.50" hole spacing turned inward or 14.75" turned outward, with a 0.25in mounting bolt drill size. Browse more in our marine lighting category.

Key Features: 72W output (24x 3W CREE LEDs), 5400 raw lumens, 6000K color temperature, combo flood (90°) / spot (8°) beam pattern, die-cast aluminum housing with UV-resistant white coating, IP68 rated, reverse polarity protection, stainless 316 hardware.

Frequently Asked Questions

How bright is this light bar? It puts out 5400 raw lumens at 72W, using 24 CREE LEDs.

What beam pattern does this light bar use? It uses a combo pattern with a 90 degree flood and an 8 degree spot.

Is this light bar waterproof? Yes, it carries an IP68 rating and uses a Gore membrane for marine environments.

Specifications

Type:
Marine LED Light Bar
Brand:
Heise
Model:
HE-MDR14
Size:
14 inches
Input Voltage:
10-30V DC
Wattage:
72W (24x 3W CREE LEDs)
Raw Lumens:
5400
Color Temperature:
6000K
Beam Pattern:
Combo / Flood (90°) / Spot (8°)
Housing Material:
Die-Cast Aluminum, White Coated with UV Inhibitors
Lens Material:
PC
Membrane:
Gore
Mounting Bracket:
Die-Cast Aluminum
Hole Spacing:
13.50in Inward / 14.75in Outward
Mounting Bolt Drill:
0.25in
Hardware:
Stainless 316
Operating Temperature:
-40°C to +60°C
Current Draw:
3.7A @ 13.8V
IP Rating:
IP68
Protections:
Reverse Polarity
Weight:
5.20 lbs

Specifications

Type, Brand, Model, Size, Input Voltage, Wattage, Raw Lumens, Color Temperature, Beam Pattern, Housing Material,

Specifications

Type:
Marine LED Light Bar
Brand:
Heise
Model:
HE-MDR14
Size:
14 inches
Input Voltage:
10-30V DC
Wattage:
72W (24x 3W CREE LEDs)
Raw Lumens:
5400
Color Temperature:
6000K
Beam Pattern:
Combo / Flood (90°) / Spot (8°)
Housing Material:
Die-Cast Aluminum, White Coated with UV Inhibitors
Lens Material:
PC
Membrane:
Gore
Mounting Bracket:
Die-Cast Aluminum
Hole Spacing:
13.50in Inward / 14.75in Outward
Mounting Bolt Drill:
0.25in
Hardware:
Stainless 316
Operating Temperature:
-40°C to +60°C
Current Draw:
3.7A @ 13.8V
IP Rating:
IP68
Protections:
Reverse Polarity
Weight:
5.20 lbs
