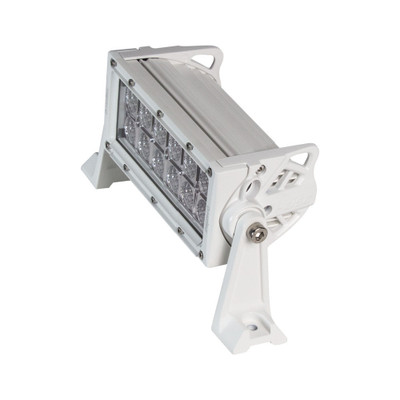

Heise 8 Inch Dual Row 36W Marine LED Light Bar

The Heise Dual Row Marine LED Light Bar packs 12 CREE LEDs at 3W each into an 8" die-cast aluminum housing, putting out 36W and 2880 raw lumens at a 6000K color temperature. A combo beam pattern blends a 90 degree flood with an 8 degree spot, giving wide area coverage along with extra reach for spotting farther distances on the water.

The white coated housing includes UV inhibitors to resist fading and degradation from sun exposure, while a Gore membrane and PC lens keep the internals protected. Integrated, epoxy-encapsulated electronics and stainless 316 hardware are built to handle the marine environment, backed by an IP68 rating and reverse polarity protection.

Running on 10-30V DC input, the light bar draws 1.9 amps at 13.8 volts and operates reliably from -40°C to +60°C. Die-cast aluminum mounting brackets offer 7.25" hole spacing turned inward or 9.5" turned outward, with a 0.25in mounting bolt drill size. Browse more in our marine lighting category.

Key Features

• 2880 raw lumens configuration
• stainless 316 hardware configuration
• 7.25in Inward / 9.5in Outward hole spacing

Additional Details: Hardware: 316 Stainless; Current Draw: 1.9A @ 13.8V; Weight: 3.4 lb.

Frequently Asked Questions

How bright is this light bar? It puts out 2880 raw lumens at 36W, using 12 CREE LEDs.

What beam pattern does this light bar use? It uses a combo pattern with a 90 degree flood and an 8 degree spot.

Is this light bar waterproof? Yes, it carries an IP68 rating and uses a Gore membrane for marine environments.
