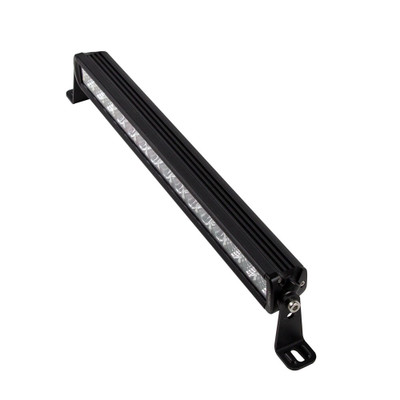

Heise Single Row Slimline 20.25in LED Light Bar

(0) Write a Review
UPC 086429317363
Availability In Stock
UPC:
086429317363
MPN:
HE-SL2014
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$277.99
MSRP: $308.99
Fast shipping from Georgia
✓ Ships within 1 Business Day
✓ Trusted by 28,000+ customers
✓ Authorized Dealer
✓ 30 Day Hassle-Free Returns
Condition: New
Shipping: $5.95 Flat Rate (Per Order)

Options

$277.99
MSRP: $308.99
Or
✓Ships within 1 business day
✓Fast shipping from Georgia
✓Quality gear since 2001
✓Secure checkout

Description

The Heise Single Row Slimline LED Light Bar packs 15 OSRAM LEDs at 3W each into a slim 20-1/4" powder coated aluminum housing, putting out 45W and 3600 raw lumens at a 6000K color temperature. A combo beam pattern blends a 90 degree flood with an 8 degree spot, giving wide area coverage along with extra reach for spotting farther distances, delivering 1280 lux at 10 meters.

A Gore membrane and PC lens protect the internals, while integrated, epoxy-encapsulated electronics and stainless 316 hardware are built to handle marine and off-road environments. The light bar carries an IP67 rating along with reverse polarity protection for reliable operation in wet, rugged conditions.

Running on 10-30V DC input, the light bar draws 2.4 amps at 13.8 volts and operates reliably from -40°C to +60°C. Die-cast aluminum mounting brackets mount to the side or bottom, offering 20" hole spacing turned inward or 22" turned outward, with a 0.25in mounting bolt drill size. The light bar itself stands just 2" tall and 2" deep. Browse more in our marine lighting category.

Key Features: 45W output (15x 3W OSRAM LEDs), 3600 raw lumens, 1280 lux at 10m, combo flood (90°) / spot (8°) beam pattern, slim 2" x 2" profile, powder coated aluminum housing, IP67 rated, reverse polarity protection, stainless 316 hardware.

Frequently Asked Questions

How bright is this light bar? It puts out 3600 raw lumens at 45W, delivering 1280 lux at 10 meters.

What beam pattern does this light bar use? It uses a combo pattern with a 90 degree flood and an 8 degree spot.

Is this light bar waterproof? Yes, it carries an IP67 rating and uses a Gore membrane for marine and off-road environments.

Specifications

Type:
LED Light Bar
Brand:
Heise
Model:
HE-SL2014
Size:
20.25 inches
Input Voltage:
10-30V DC
Wattage:
45W (15x 3W OSRAM LEDs)
Raw Lumens:
3600
Lux @ 10m:
1280
Color Temperature:
6000K
Beam Pattern:
Combo / Flood (90°) / Spot (8°)
Housing Material:
Powder Coated Aluminum
Housing Color:
Black
Lens Material:
PC
Membrane:
Gore
Mounting Bracket:
Die-Cast Aluminum
Mounting:
Side and Bottom
Hole Spacing:
20in Inward / 22in Outward
Mounting Bolt Drill:
0.25in
Bar Height/Depth:
2in x 2in
Hardware:
Stainless 316
Operating Temperature:
-40°C to +60°C
Current Draw:
2.4A @ 13.8V
IP Rating:
IP67
Protections:
Reverse Polarity
Weight:
4.60 lbs

Description

The Heise Single Row Slimline LED Light Bar packs 15 OSRAM LEDs at 3W each into a slim 20-1/4" powder coated aluminum housing, putting out 45W and 3600 raw lumens at a 6000K color temperature. A combo beam pattern blends a 90 degree flood with an 8 degree spot, giving wide area coverage along with extra reach for spotting farther distances, delivering 1280 lux at 10 meters.

A Gore membrane and PC lens protect the internals, while integrated, epoxy-encapsulated electronics and stainless 316 hardware are built to handle marine and off-road environments. The light bar carries an IP67 rating along with reverse polarity protection for reliable operation in wet, rugged conditions.

Running on 10-30V DC input, the light bar draws 2.4 amps at 13.8 volts and operates reliably from -40°C to +60°C. Die-cast aluminum mounting brackets mount to the side or bottom, offering 20" hole spacing turned inward or 22" turned outward, with a 0.25in mounting bolt drill size. The light bar itself stands just 2" tall and 2" deep. Browse more in our marine lighting category.

Key Features: 45W output (15x 3W OSRAM LEDs), 3600 raw lumens, 1280 lux at 10m, combo flood (90°) / spot (8°) beam pattern, slim 2" x 2" profile, powder coated aluminum housing, IP67 rated, reverse polarity protection, stainless 316 hardware.

Frequently Asked Questions

How bright is this light bar? It puts out 3600 raw lumens at 45W, delivering 1280 lux at 10 meters.

What beam pattern does this light bar use? It uses a combo pattern with a 90 degree flood and an 8 degree spot.

Is this light bar waterproof? Yes, it carries an IP67 rating and uses a Gore membrane for marine and off-road environments.

Specifications

Type:
LED Light Bar
Brand:
Heise
Model:
HE-SL2014
Size:
20.25 inches
Input Voltage:
10-30V DC
Wattage:
45W (15x 3W OSRAM LEDs)
Raw Lumens:
3600
Lux @ 10m:
1280
Color Temperature:
6000K
Beam Pattern:
Combo / Flood (90°) / Spot (8°)
Housing Material:
Powder Coated Aluminum
Housing Color:
Black
Lens Material:
PC
Membrane:
Gore
Mounting Bracket:
Die-Cast Aluminum
Mounting:
Side and Bottom
Hole Spacing:
20in Inward / 22in Outward
Mounting Bolt Drill:
0.25in
Bar Height/Depth:
2in x 2in
Hardware:
Stainless 316
Operating Temperature:
-40°C to +60°C
Current Draw:
2.4A @ 13.8V
IP Rating:
IP67
Protections:
Reverse Polarity
Weight:
4.60 lbs

Specifications

Type, Brand, Model, Size, Input Voltage, Wattage, Raw Lumens, Lux @ 10m, Color Temperature, Beam Pattern,

Specifications

Type:
LED Light Bar
Brand:
Heise
Model:
HE-SL2014
Size:
20.25 inches
Input Voltage:
10-30V DC
Wattage:
45W (15x 3W OSRAM LEDs)
Raw Lumens:
3600
Lux @ 10m:
1280
Color Temperature:
6000K
Beam Pattern:
Combo / Flood (90°) / Spot (8°)
Housing Material:
Powder Coated Aluminum
Housing Color:
Black
Lens Material:
PC
Membrane:
Gore
Mounting Bracket:
Die-Cast Aluminum
Mounting:
Side and Bottom
Hole Spacing:
20in Inward / 22in Outward
Mounting Bolt Drill:
0.25in
Bar Height/Depth:
2in x 2in
Hardware:
Stainless 316
Operating Temperature:
-40°C to +60°C
Current Draw:
2.4A @ 13.8V
IP Rating:
IP67
Protections:
Reverse Polarity
Weight:
4.60 lbs
