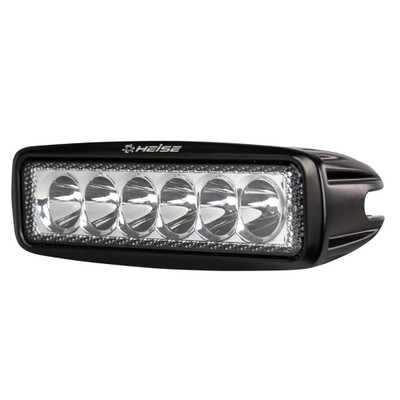

Heise 6 LED Single Row 18W Driving Light

(0) Write a Review
UPC 086429312917
Availability In Stock
UPC:
086429312917
MPN:
HE-DL1
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$121.99
MSRP: $135.99
Fast shipping from Georgia
✓ Ships within 1 Business Day
✓ Trusted by 28,000+ customers
✓ Authorized Dealer
✓ 30 Day Hassle-Free Returns
Condition: New
Shipping: $5.95 Flat Rate (Per Order)

Options

$121.99
MSRP: $135.99
Only 2 left in stock
Or
✓Ships within 1 business day
✓Fast shipping from Georgia
✓Quality gear since 2001
✓Secure checkout

Description

The Heise 6 LED Single Row Driving Light packs six 3W OSRAM LEDs into a compact black die-cast aluminum housing, putting out 18W and 1440 raw lumens at a 6000K color temperature. A tight 25 degree spot beam pattern is built for long-distance reach, helping light the way ahead on trails, roads, or the water.

Integrated, epoxy-encapsulated electronics and stainless 316 hardware are built to handle harsh outdoor use, paired with a black powder coated steel mounting bracket for secure, durable installation. The light carries an IP67 rating along with reverse polarity protection for reliable operation in wet and rugged conditions.

Running on 10-30V DC input, the driving light draws just 0.9 amps at 13.8 volts and operates reliably from -40°C to +60°C, with a 0.25in mounting bolt drill size for easy installation. Browse more in our marine lighting category.

Key Features: 18W output (6x 3W OSRAM LEDs), 1440 raw lumens, 6000K color temperature, 25 degree spot beam, black die-cast aluminum housing, black powder coated steel mounting bracket, IP67 rated, reverse polarity protection, stainless 316 hardware.

Frequently Asked Questions

How bright is this driving light? It puts out 1440 raw lumens at 18W, using 6 OSRAM LEDs.

What beam pattern does this light use? It uses a tight 25 degree spot beam for long-distance reach.

Is this light waterproof? Yes, it carries an IP67 rating for use in wet, rugged conditions.

Specifications

Type:
LED Driving Light
Brand:
Heise
Model:
HE-DL1
Input Voltage:
10-30V DC
Wattage:
18W (6x 3W OSRAM LEDs)
Raw Lumens:
1440
Color Temperature:
6000K
Beam Pattern:
25 Degree Spot
Housing Material:
Black Die-Cast Aluminum
Lens Material:
PC
Mounting Bracket:
Black Powder Coated Steel
Mounting Bolt Drill:
0.25in
Hardware:
Stainless 316
Operating Temperature:
-40°C to +60°C
Current Draw:
0.9A @ 13.8V
IP Rating:
IP67
Protections:
Reverse Polarity
Weight:
1.20 lbs

Description

The Heise 6 LED Single Row Driving Light packs six 3W OSRAM LEDs into a compact black die-cast aluminum housing, putting out 18W and 1440 raw lumens at a 6000K color temperature. A tight 25 degree spot beam pattern is built for long-distance reach, helping light the way ahead on trails, roads, or the water.

Integrated, epoxy-encapsulated electronics and stainless 316 hardware are built to handle harsh outdoor use, paired with a black powder coated steel mounting bracket for secure, durable installation. The light carries an IP67 rating along with reverse polarity protection for reliable operation in wet and rugged conditions.

Running on 10-30V DC input, the driving light draws just 0.9 amps at 13.8 volts and operates reliably from -40°C to +60°C, with a 0.25in mounting bolt drill size for easy installation. Browse more in our marine lighting category.

Key Features: 18W output (6x 3W OSRAM LEDs), 1440 raw lumens, 6000K color temperature, 25 degree spot beam, black die-cast aluminum housing, black powder coated steel mounting bracket, IP67 rated, reverse polarity protection, stainless 316 hardware.

Frequently Asked Questions

How bright is this driving light? It puts out 1440 raw lumens at 18W, using 6 OSRAM LEDs.

What beam pattern does this light use? It uses a tight 25 degree spot beam for long-distance reach.

Is this light waterproof? Yes, it carries an IP67 rating for use in wet, rugged conditions.

Specifications

Type:
LED Driving Light
Brand:
Heise
Model:
HE-DL1
Input Voltage:
10-30V DC
Wattage:
18W (6x 3W OSRAM LEDs)
Raw Lumens:
1440
Color Temperature:
6000K
Beam Pattern:
25 Degree Spot
Housing Material:
Black Die-Cast Aluminum
Lens Material:
PC
Mounting Bracket:
Black Powder Coated Steel
Mounting Bolt Drill:
0.25in
Hardware:
Stainless 316
Operating Temperature:
-40°C to +60°C
Current Draw:
0.9A @ 13.8V
IP Rating:
IP67
Protections:
Reverse Polarity
Weight:
1.20 lbs
