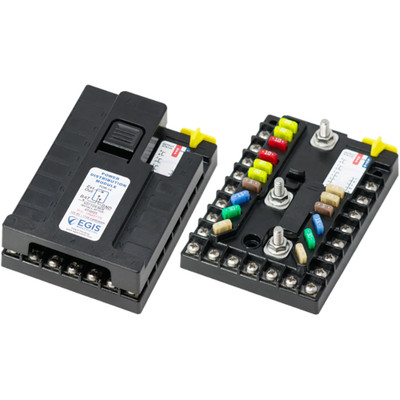

Egis PDM 14-Circuit 175A Power Distribution Module

The Egis PDM 14-Circuit 175A Power Distribution Module is a 12V platform with battery protection, switching, circuit protection, a ground bus and a kill switch.

Three output groups can be configured independently for 24/7 power, ignition-switched operation or delayed shutdown. Delayed shutdown is the useful one: electronics that need a moment to close down properly keep power after the key turns off, rather than being cut mid-write.

Fourteen circuits with three high-power 45A outputs covers a substantial installation from one module. Building the equivalent from separate fuse blocks, relays and a ground bus means more mounting, more wiring and more places for a connection to loosen.

A hundred and seventy-five amps is the total continuous output, and the individual circuits have to sum within that. Kill-switch capability disconnects everything from one control, which is worth having on a boat where the alternative is finding several switches. Explore more power distribution and bus bars.

• Three groups: always on, ignition-switched, delayed
• That delay lets electronics close down properly
• 14 circuits with three 45A outputs
• Circuits must sum within 175A total
