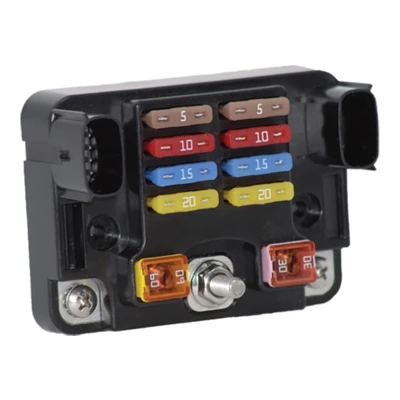

EGIS 8+2 Marine Power Distribution Fuse Block

The EGIS 8+2 Marine Power Distribution Fuse Block combines low-current and high-current circuit protection in a single compact distribution point. It is designed to reduce installation space, wiring time, and total installed cost by handling low-amp outputs through two MX-150 connectors while also providing two high-amp fused outputs for heavier branch circuits.

The two high-current positions support 20 to 50A protection, while the low-current section protects add-on circuits from accidental shorts to frame ground or battery negative and from overload conditions. Total continuous current is rated at 200A. Each ATO fuse position supports up to 22A, each low-profile J-case position up to 50A, and each four-position MX-150 connector up to 50A. The MX-150 outputs accept wire up to 14 AWG.

The block operates from 8 to 36VDC, making it useful across common 12V and 24V marine electrical systems. EGIS backs the unit with a 4-year manufacturer warranty.

• Combines low-amp and high-amp fused distribution in one compact block
• Two 20 to 50A high-current outputs for larger protected loads
• Two MX-150 low-current output connectors with up to 14 AWG wiring
• 200A total continuous-current rating over an 8 to 36VDC range
• Protects add-on circuits from overloads and accidental shorts
