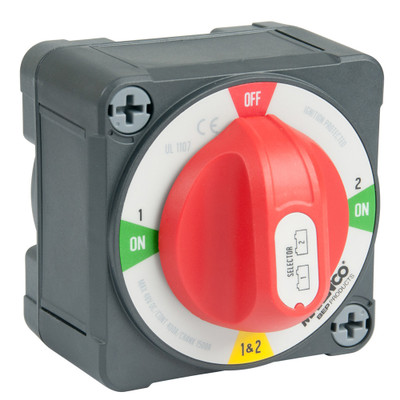

BEP Marine 400A EZ-Mount Double Pole Battery Switch
$86.95
MSRP:
$118.00
BEP Marine 400A EZ-Mount Battery Selector Switch
- UPC:
- 843687007692
- MPN:
- 771-S-EZ
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
$73.95
MSRP:
$99.22
Fast shipping from Georgia
✓
Ships within 1 Business Day
✓
Trusted by 28,000+ customers
✓
Authorized Dealer
✓
30 Day Hassle-Free Returns
Condition:
New
Shipping:
$5.95 Flat Rate (Per Order)
Description
The BEP Marine 400A EZ-Mount Battery Selector Switch is a Pro Installer switch that wires entirely from the front, so installation and cabling stay accessible even after it's mounted. It is designed for installers who want the fastest, most compact battery switch installation on the boat.

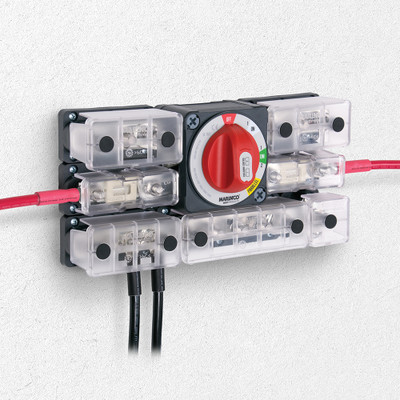

Its shared interconnection height lets it cluster directly with BEP's Pro Installer busbar range for a clean, compact layout, while a removable knob allows isolation during servicing and three removable side plates protect the terminals. It's rated 400A continuous, 600A for 5 minutes intermittent, and 1500A for 10 seconds cranking, and waterproof to IP66. Browse more options in our panels, switches, and circuit breakers category.
Key Features: 1-2-Both-Off operation, wires from the front for easy access, clusters with Pro Installer busbars, removable knob for service isolation, waterproof to IP66, tinned copper 10mm studs, sold individually.
Frequently Asked Questions
What switch positions does this offer? It offers 1, 2, Both, and Off positions.
Can this be wired from the front? Yes, EZ-Mount switches wire entirely from the front for the easiest installation.
What's the cranking rating? It's rated for 1500A cranking for 10 seconds.
Specifications
- Manufacturer Part Number:
- 771-S-EZ
- Operation:
- 1-2-Both-Off
- Rating:
- 400A Continuous / 600A Intermittent / 1500A Cranking
- Dimensions:
- 3.85" x 3.85" x 3.62"
- Mounting:
- Surface Only
- Weight:
- 1.2 lbs
- Prop 65 Warning:
- WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
Description
The BEP Marine 400A EZ-Mount Battery Selector Switch is a Pro Installer switch that wires entirely from the front, so installation and cabling stay accessible even after it's mounted. It is designed for installers who want the fastest, most compact battery switch installation on the boat.
Its shared interconnection height lets it cluster directly with BEP's Pro Installer busbar range for a clean, compact layout, while a removable knob allows isolation during servicing and three removable side plates protect the terminals. It's rated 400A continuous, 600A for 5 minutes intermittent, and 1500A for 10 seconds cranking, and waterproof to IP66. Browse more options in our panels, switches, and circuit breakers category.
Key Features: 1-2-Both-Off operation, wires from the front for easy access, clusters with Pro Installer busbars, removable knob for service isolation, waterproof to IP66, tinned copper 10mm studs, sold individually.
Frequently Asked Questions
What switch positions does this offer? It offers 1, 2, Both, and Off positions.
Can this be wired from the front? Yes, EZ-Mount switches wire entirely from the front for the easiest installation.
What's the cranking rating? It's rated for 1500A cranking for 10 seconds.
Specifications
- Manufacturer Part Number:
- 771-S-EZ
- Operation:
- 1-2-Both-Off
- Rating:
- 400A Continuous / 600A Intermittent / 1500A Cranking
- Dimensions:
- 3.85" x 3.85" x 3.62"
- Mounting:
- Surface Only
- Weight:
- 1.2 lbs
- Prop 65 Warning:
- WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications
Manufacturer Part Number, Operation, Rating, Dimensions, Mounting, Weight, Prop 65 Warning,
Specifications
- Manufacturer Part Number:
- 771-S-EZ
- Operation:
- 1-2-Both-Off
- Rating:
- 400A Continuous / 600A Intermittent / 1500A Cranking
- Dimensions:
- 3.85" x 3.85" x 3.62"
- Mounting:
- Surface Only
- Weight:
- 1.2 lbs
- Prop 65 Warning:
- WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
