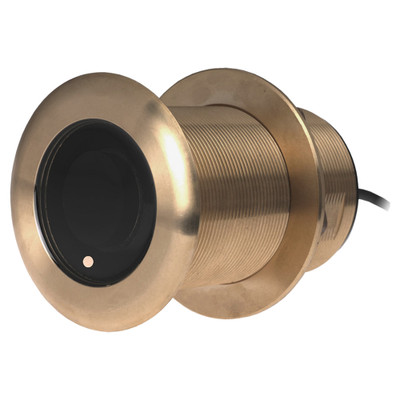

Airmar B60 20° Bronze Thru-Hull Depth Transducer

(0) Write a Review
UPC 801769000399
Availability In Stock
UPC:
801769000399
MPN:
B60-20-MM
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$389.00
MSRP: $429.99
Fast shipping from Georgia
✓ Ships within 1 Business Day
✓ Trusted by 28,000+ customers
✓ Authorized Dealer
✓ 30 Day Hassle-Free Returns
Condition: New
Shipping: $5.95 Flat Rate (Per Order)

Options

$389.00
MSRP: $429.99
Or
✓Ships within 1 business day
✓Fast shipping from Georgia
✓Quality gear since 2001
✓Secure checkout

Description

The Airmar B60 is a 600W, 50/200 kHz transducer that integrates Airmar's popular Tilted Element feature. This 20-degree Tilted Element transducer has the ceramic element fixed at an angle within the housing, so that when installed almost flush with the hull, the tilt corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.

This bronze housing version is built for fiberglass or wood hulls, with a low-profile design that extends only 5mm (3/16") outside the hull and has no effect on running performance, making it ideal for center-console or trailered boats. The dual-frequency element delivers 50 kHz with a wide 45-degree beamwidth for depth performance to 1200 feet, and 200 kHz with a 12-degree beamwidth for depth performance to 700 feet. This unit requires a separately sold cable to complete the installation. Browse more in our fish finders category.

Key Features: Depth and fast-response water temperature sensing, 600W power rating, dual-frequency 50/200 kHz element, 20-degree Tilted Element design, low-profile bronze housing, no effect on boat running performance, max deadrise angle of 24°, cable sold separately.

Frequently Asked Questions

What does the Tilted Element feature do? The ceramic element is fixed at a 20-degree angle within the housing, so when installed almost flush with the hull, the tilt corrects for hull deadrise and orients the beam directly down for more accurate depth readings.

What hull materials is this compatible with? Fiberglass or wood hulls; a stainless steel housing version (SS60) is available for all hull materials.

Does this come with a cable? No, a cable is required and sold separately to complete the installation (mix and match).

Specifications

Type:
Thru-Hull Transducer
Brand:
Airmar
Model:
B60
SKU:
105940
Angle:
20°
Power Rating:
600W
Frequency:
50/200 kHz (Dual)
Housing:
Bronze
Functions:
Depth, Temperature
Hull Material:
Fiberglass or Wood
Max Vessel LOA:
Up to 8m (26ft)
Hole Size:
60mm (2-3/8in)
Usable Shaft Length:
68.5mm (2.70in)
Acoustic Window:
Urethane
Max Deadrise:
Up to 24°
Max Depth:
1200 ft (Low Freq) / 700 ft (High Freq)
Mounting Style:
Tilted Element Thru-Hull
Tilted Element:
Yes
Cable:
Sold Separately (Mix & Match)
Weight:
4.50 lbs

Description

The Airmar B60 is a 600W, 50/200 kHz transducer that integrates Airmar's popular Tilted Element feature. This 20-degree Tilted Element transducer has the ceramic element fixed at an angle within the housing, so that when installed almost flush with the hull, the tilt corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.

This bronze housing version is built for fiberglass or wood hulls, with a low-profile design that extends only 5mm (3/16") outside the hull and has no effect on running performance, making it ideal for center-console or trailered boats. The dual-frequency element delivers 50 kHz with a wide 45-degree beamwidth for depth performance to 1200 feet, and 200 kHz with a 12-degree beamwidth for depth performance to 700 feet. This unit requires a separately sold cable to complete the installation. Browse more in our fish finders category.

Key Features: Depth and fast-response water temperature sensing, 600W power rating, dual-frequency 50/200 kHz element, 20-degree Tilted Element design, low-profile bronze housing, no effect on boat running performance, max deadrise angle of 24°, cable sold separately.

Frequently Asked Questions

What does the Tilted Element feature do? The ceramic element is fixed at a 20-degree angle within the housing, so when installed almost flush with the hull, the tilt corrects for hull deadrise and orients the beam directly down for more accurate depth readings.

What hull materials is this compatible with? Fiberglass or wood hulls; a stainless steel housing version (SS60) is available for all hull materials.

Does this come with a cable? No, a cable is required and sold separately to complete the installation (mix and match).
