Uflex TM87 12-Foot Rack and Pinion Steering System

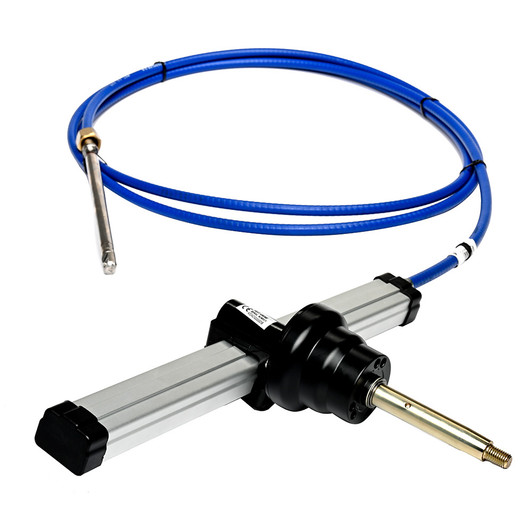

The Uflex TM87 12-Foot Rack and Pinion Steering System is a matched mechanical steering package built around a 12-foot TM87XLL cable. MPN TM87OX12 combines the G87 front-mount helm, rack-and-pinion cable, and X34 bezel for installations whose measured steering route calls for this cable length.

The G87 helm uses a standard 3/4 in tapered steering shaft and is designed for about 3.3 steering-wheel turns from lock to lock. The cable provides 3.7 in of stroke, while stainless-steel output ends and corrosion-resistant materials support marine use.

Measure the complete route from the helm to the engine before installation, including bends and service allowance. Maintain the specified 7.9 in minimum bend radius, verify dash clearance and the engine connection, and confirm smooth travel through the full steering range after installation.

• G87 front-mount helm and X34 bezel supplied as a matched package
• Approximately 3.3 turns from lock to lock
• 3.7 in steering-cable stroke
• 7.9 in minimum cable bend radius
