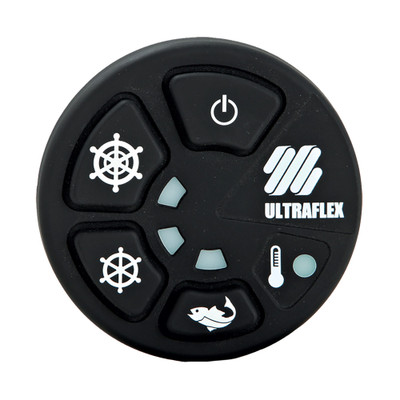

Uflex MasterDrive UCMD User Interface Panel

The Uflex MasterDrive UCMD user interface panel gives the operator direct control and status information for a compatible MasterDrive power-assisted steering system. The lighted panel includes an on/off safety switch and selectable assistance levels, allowing steering support to be adjusted from the helm while system status remains visible.

Three power levels are identified by light indicators, and a motor-temperature display gives operating feedback during use. Twin-engine key selection is included, and the plug-in wiring harness simplifies connection within the matched MasterDrive system. The panel can also support a compatible second-station installation.

Confirm MasterDrive system compatibility, helm-station configuration, wiring-harness routing, panel cutout, electrical connections, and environmental mounting location before installation. Follow Uflex wiring and commissioning procedures carefully. After installation, test the safety switch, each assistance level, temperature indication, and steering response at every connected station.

• Three power settings let the operator tailor MasterDrive assistance.
• Light indicators show assistance selection and motor-temperature information.
• The dedicated on/off control gives a clear MasterDrive operating interface.
• Plug-in wiring and second-station capability simplify compatible helm layouts.
