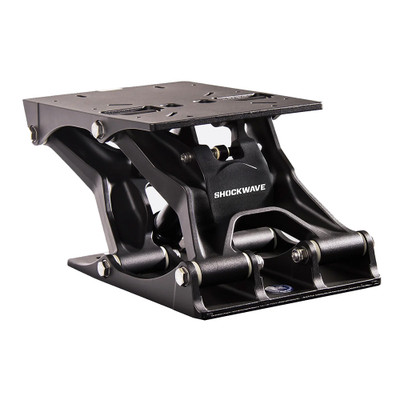

Shockwave S5-AL Black Suspension Seat Base
- UPC:
- 646561021353
- MPN:
- SW-07823-B
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Description
The Shockwave S5-AL black suspension seat base is designed to reduce the harsh vertical and forward forces created by wave impacts. Its four-link forward-action suspension helps boaters travel farther and remain comfortable during extended periods on the water.
Construction and Performance
A custom-tuned FOX Rhythm air-sprung shock provides adjustable rebound and combines four inches of vertical travel with approximately 1.5 inches of forward movement. The base uses anodized A360 cast aluminum, a powder-coated finish, and 316 stainless steel hardware.
Recommended Applications
The universal design can be adapted to many fishing boats, coastal cruisers, guide boats, crew boats, yacht tenders, and recreational vessels. A shock pump with pressure gauge is included. Browse related seating & helm accessories for compatible seats and mounting accessories.
Frequently Asked Questions
What suspension travel does the base provide? It provides four inches of vertical travel and approximately 1.5 inches of forward movement.
Is a shock pump included? Yes. A shock pump with a pressure gauge is included.
Can it fit different marine seats? The universal design fits many seats, but the bolt pattern and required adapter should be confirmed.
Specifications
- MPN:
- SW-07823-B
- Product Type:
- Suspension Seat Base
- Color:
- Black
- Suspension Design:
- 4-Link Forward Action
- Vertical Travel:
- 4"
- Forward Travel:
- 1.5"
- Shock:
- FOX Rhythm Air Spring
- Material:
- A360 Cast Aluminum
- Hardware:
- 316 Stainless Steel
- Shock Pump Included:
- Yes
- Shipping Weight:
- 29.8 lbs
