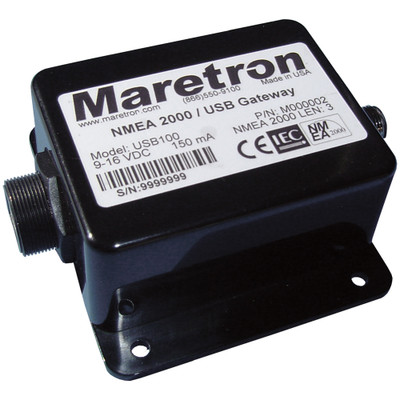

Maretron USB100 NMEA 2000 to USB Gateway Bridge

The Maretron USB100 is a gateway between an NMEA 2000 network and a computer running NMEA 0183 navigation software. It converts NMEA 2000 messages to NMEA 0183 sentences automatically. That lets you keep using charting software you already own with a modern networked system.

It translates GPS data, speed and course over ground, heading, rudder angle, depth, speed, distance log, weather and wind. It also handles navigation data like bearing to waypoint, distance to waypoint, VMG, ETA, time to go, cross track error and set and drift. Connection is through a standard USB port.

Maretron builds it to IEC 60945 standards in a compact waterproof housing. It's a simple bridge for a nav station PC. Check the available mounting space and surrounding hardware before installation so a correct part number does not turn into a clearance problem. Browse more marine networking.

• Bridges NMEA 2000 to a PC over USB
• Converts to NMEA 0183 sentences
• Supports waypoint and navigation data
• Built to IEC 60945
• Est. Time of Arrival (ETA) Time to Go (TTG) Cross Track Error (XTE) Set / Drift
