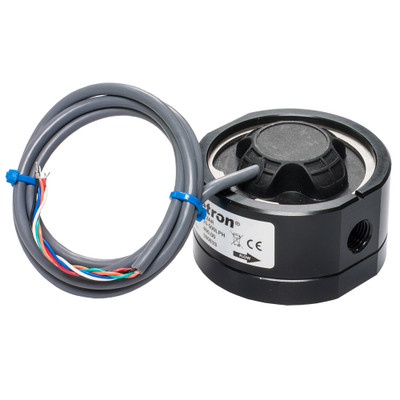

Maretron Fuel Flow Sensor, 25-500 LPH Range
- UPC:
- 873804003535
- MPN:
- M2AR
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Description
The Maretron Fuel Flow Sensor (25-500 LPH / 6.6-132 GPH) measures fuel flow for accurate fuel management reporting over your NMEA 2000 network. It is designed for boaters who want precise flow data across a wide operating range for larger engines and fuel systems.
Operating from -40°C to 80°C with a 1/4" NPT female port and a 1-meter cable, this sensor handles fluids up to 1000 cPs viscosity and pressures up to 68.95 bar (1000 PSI), with a 200 mesh strainer recommended if not already installed after the fuel filter. Browse more options in our instruments and compasses category.
Key Features: 25-500 LPH range, 1/4" NPT port, 1000 cPs max viscosity, 1000 PSI rated.
Frequently Asked Questions
What flow range does this sensor measure? 25-500 LPH (6.6-132 GPH).
What port size does this sensor use? 1/4" NPT female.
What is this sensor's maximum pressure rating? 68.95 bar (1000 PSI).
Specifications
- MPN:
- M2AR
- Flow Range:
- 25-500 LPH / 6.6-132 GPH
- Port Size:
- 1/4" NPT Female
- Cable Length:
- 1M (3.28 ft)
- Max Viscosity:
- 1000 cPs
- Pressure Rating:
- 68.95 Bar (1000 PSI)
- Strainer:
- 200 Mesh
- Weight:
- 1.4 lbs
- Prop 65 Warning:
- WARNING: This product can expose you to chemicals including NICKEL (METALLIC), which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Description
The Maretron Fuel Flow Sensor (25-500 LPH / 6.6-132 GPH) measures fuel flow for accurate fuel management reporting over your NMEA 2000 network. It is designed for boaters who want precise flow data across a wide operating range for larger engines and fuel systems.
Operating from -40°C to 80°C with a 1/4" NPT female port and a 1-meter cable, this sensor handles fluids up to 1000 cPs viscosity and pressures up to 68.95 bar (1000 PSI), with a 200 mesh strainer recommended if not already installed after the fuel filter. Browse more options in our instruments and compasses category.
Key Features: 25-500 LPH range, 1/4" NPT port, 1000 cPs max viscosity, 1000 PSI rated.
Frequently Asked Questions
What flow range does this sensor measure? 25-500 LPH (6.6-132 GPH).
What port size does this sensor use? 1/4" NPT female.
What is this sensor's maximum pressure rating? 68.95 bar (1000 PSI).
Specifications
- MPN:
- M2AR
- Flow Range:
- 25-500 LPH / 6.6-132 GPH
- Port Size:
- 1/4" NPT Female
- Cable Length:
- 1M (3.28 ft)
- Max Viscosity:
- 1000 cPs
- Pressure Rating:
- 68.95 Bar (1000 PSI)
- Strainer:
- 200 Mesh
- Weight:
- 1.4 lbs
- Prop 65 Warning:
- WARNING: This product can expose you to chemicals including NICKEL (METALLIC), which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
