Maretron Micro Double-Ended Cordset, 8-Meter
- UPC:
- 873804001586
- MPN:
- CM-CG1-CF-08.0
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $6.95 Flat Rate (Per Order)
Fast shipping from Georgia
Description

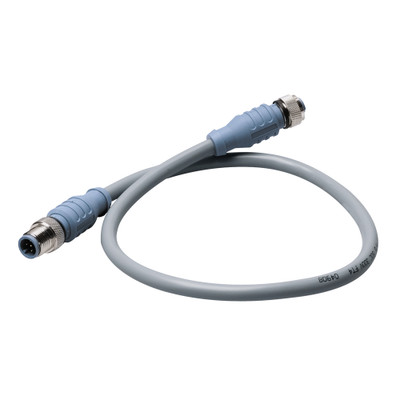

The Maretron Micro Double-Ended Cordset is an 8 meter NMEA 2000 cable with Micro connectors on each end. It works as a backbone section or a drop cable. Using the right length avoids coiling excess cable.
The connectors have gold-plated brass contacts, nickel-plated brass coupling nuts and blue-gray thermoplastic bodies, rated IP68. The cable is shielded three ways, overall and on both the power and data pairs, and rated from -40 to 80 degrees C. It's NMEA 2000 approved and carries UL and CSA cable approvals.
Current rating is 4 amps at 250 volts on 22 AWG conductors. Maretron cordsets are built for marine environments. Check the available mounting space and surrounding hardware before installation so a correct part number does not turn into a clearance problem. Browse more marine networking.
- 8 meter NMEA 2000 Micro cordset
- Gold-plated contacts
- Triple shielding
- IP68 rated
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved
Specifications
- Product Type:
- Network Cable
- Color:
- Multicolor
- Connectivity:
- NMEA 2000
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Maretron
- Feed MPN:
- CM-CG1-CF-08.0
- Feed GTIN:
- 873804001586
- Water Resistance:
- IP68
