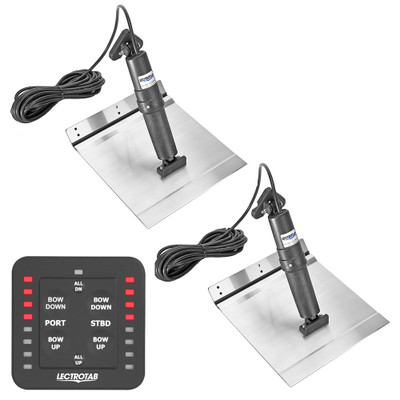

Lectrotab 9 x 12 Aluminum One-Touch Trim Tab Kit

The Lectrotab 9 x 12 Aluminum One-Touch Trim Tab Kit combines a compact rectangular plane with electric trim control for boats in the 16 to 25 ft range. The planes are made from marine-grade 6005-T5 aluminum alloy with a corrosion-resistant epoxy coating and a polypropylene hinge for durable service in marine environments.

Two sealed electric actuators provide direct tab movement without pumps, reservoirs, or hydraulic lines. Each actuator incorporates pressure equalization and an internal brake to help prevent unwanted tab movement when the boat is running or backing down. The One-Touch LED helm control gives the operator both trim adjustment and visual tab-position feedback for correcting list, reducing bow rise, and adapting the running attitude to changing loads.

Lectrotab packages the two aluminum planes, two actuators with attached cables, One-Touch control, and installation instructions together. The 9 x 12 in format offers a different footprint from the 12 x 9 version, giving installers another plane orientation to match available transom space and the intended application.

• One-Touch LED control provides convenient helm adjustment and position feedback
• Sealed electric actuators operate without hydraulic plumbing
• Internal actuator brake helps resist unintended movement
• Epoxy-coated aluminum planes use durable polypropylene hinges
• Complete matched kit includes planes, actuators, cabling, control, and instructions
