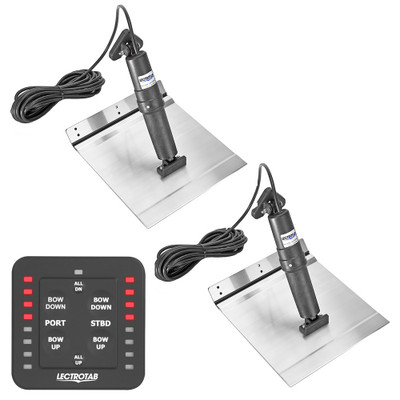

Lectrotab 12 x 9 Aluminum One-Touch Trim Tab Kit

The Lectrotab 12 x 9 Aluminum One-Touch Trim Tab Kit is configured with 12 x 9 in marine-grade aluminum planes for boats in the 18 to 29 ft range. Lectrotab uses 6005-T5 aluminum alloy with a corrosion-resistant epoxy coating, paired with a polypropylene hinge to provide a lightweight electric trim-tab system for marine use.

Rather than using a hydraulic pump and oil lines, the kit relies on two sealed electric actuators for direct tab movement. Pressure equalization inside the actuator and an internal brake system help maintain stable tab positioning while the boat is underway or backing down. A One-Touch LED control at the helm combines adjustment with visual position indication for making quick changes to running attitude.

The package includes two trim planes, two actuators with attached cables, the One-Touch control, and installation instructions. Its 12 x 9 in plane layout differs from the 9 x 12 version, allowing the installer to choose the footprint that better suits the transom and desired tab placement.

• One-Touch LED helm control combines tab adjustment and position feedback
• Electric actuators eliminate pumps, reservoirs, and hydraulic fluid lines
• Internal braking helps control unwanted tab movement
• Aluminum planes use epoxy protection and polypropylene hinges
• Matched components and installation instructions are supplied in the kit
