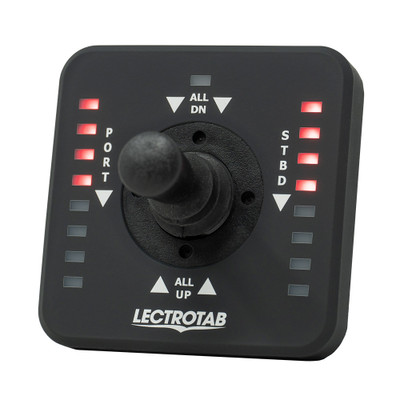

Lectrotab JLC-11 Joystick LED Trim Tab Control

The Lectrotab JLC-11 Joystick LED Trim Tab Control combines tab control and position feedback in a compact helm interface for compatible Lectrotab electric systems. A single joystick can move both tabs together or make individual corrections, giving the operator an intuitive way to reduce bow rise, level an uneven load, and fine-tune running attitude.

LED indicators show the position of each tab and automatically adjust brightness for changing ambient light. The microprocessor-based control can retract and calibrate the tabs when the key or accessory switch is turned off, and it can return to the previous tab position after a brief ignition cycle.

The JLC-11 supports 12- or 24-volt systems, one or two actuators per tab, and can be expanded for dual-station use with the required additional control and cable. NMEA 2000 compatibility is available with the appropriate JLC-NMEA adapter, allowing the control to fit more advanced helm installations without requiring an external power module. Have a look at the rest of our trim tabs and trim systems.

• A single control handles coordinated or individual tab movement from the helm.
• LED indicators provide visual feedback and automatically adapt their brightness to ambient light.
• Key-off operation can return the tabs and run calibration without extra helm steps.
• The control is dual-station ready when paired with the required second JLC-11 and cable.
• An optional JLC-NMEA adapter gives the supported network connection.
