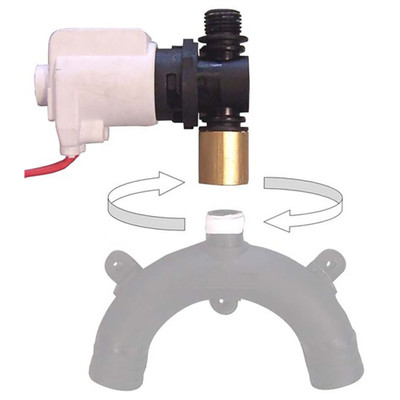

Jabsco Vented Loop Solenoid Valve for 37010 Toilet

The Jabsco Vented Loop Solenoid Valve (for 37010 Series Toilet) ensures maximum electric toilet performance and prime-ability when a vented loop is installed in the inlet hose. It is designed for 37010 series toilet owners who want reliable priming performance from their vented loop installation.

The brass port of the valve connects to the air inlet of the vented loop (removing the plastic filter if installed), while the solenoid wires in parallel with the toilet motor — one side to the toilet flush switch, the other to battery ground. Browse more options in our marine toilets & sanitation systems category.

Key Features

• brass port connection to vented loop air inlet
• wires in parallel with toilet motor
• Function: Vented Loop Air Inlet Valve
• Weight: 6.4 oz

Frequently Asked Questions

What does this valve connect to? The air inlet of a vented loop installed in the inlet hose.

How is this valve wired? In parallel with the toilet motor, one side to the flush switch and the other to battery ground.

What toilets does this valve fit? The 37010 Series Toilet.
