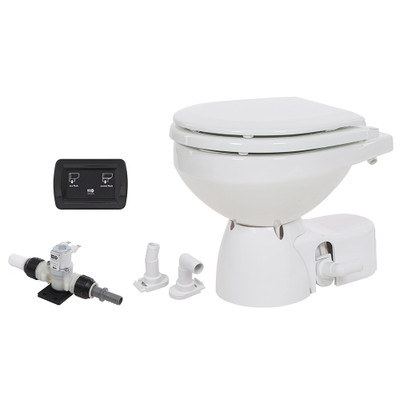

Jabsco Quiet Flush E2 24V Fresh Water Compact Bowl Toilet

The Jabsco Quiet Flush E2 24V Fresh Water Compact Bowl Toilet (part 38045-3094RSP) brings the compact, freshwater Quiet Flush E2 to boats with 24-volt house power. Many larger yachts run 24V, and this model connects directly without a converter. The compact bowl is useful for crew or guest heads with limited space.

Freshwater flushing is controlled by a solenoid valve with a 1/2-inch inlet and quick-connect fittings. An integral mesh filter keeps grit from the freshwater system out of the valve seat, and it can be rinsed clean if flow drops. The E2's double check valve keeps the potable water supply isolated from the toilet. Quick-connect port fittings make it easier to hook up and remove the water supply.

Eco flush uses about a quart of water, while full flush gives a more thorough rinse when needed. The discharge pump rotates 180 degrees during installation so hoses can run to the rear. Use the fuse rating Jabsco lists for the 24V version. The touch panel has no moving buttons to wear out or trap dirt, and it wipes clean. The 12V version and other heads are in our marine toilets and sanitation systems.

• 24V compact bowl, freshwater rinse
• 1/2-inch solenoid inlet with mesh filter
• Eco flush uses about a quart
• Rotating discharge pump
