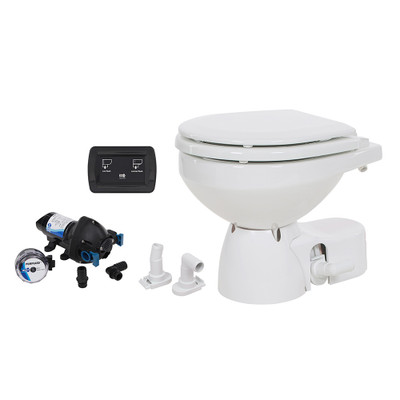

Jabsco Quiet Flush E2 12V Raw Water Compact Bowl Toilet

The Jabsco Quiet Flush E2 12V Raw Water Compact Bowl Toilet (part 38245-3092RSP) uses a remote Jabsco Par-Max 3 pump to rinse the bowl with outside water. The compact bowl measures about 14 inches high, 13.9 inches wide, and 16.3 inches deep, so it fits small heads on sailboats and cruisers. Raw water rinsing means flushing never draws down the freshwater tank.

The Par-Max 3 rinse pump moves about 3 gallons, or 11 liters, per minute and connects with 1/2-inch hose barbs. A 40-mesh inline strainer protects it from sand, weed, and shell fragments. Mount the pump close to the seacock and somewhere dry, since it runs every time the toilet flushes. Keep spare strainer screens on board for long trips in weedy water.

Eco mode uses roughly one liter per flush, which also stretches holding tank capacity between pump-outs. The empty button pumps the bowl dry, which keeps it from sloshing when the boat is underway. A 25 amp fuse is listed for the 12V model. Freshwater and regular bowl versions are in our marine toilets and sanitation systems.

• 12V compact bowl, raw water rinse
• Par-Max 3 rinse pump, about 3 GPM
• 40-mesh inline strainer
• Eco flush uses about 1 liter
