Jabsco 12V Marine Water Pressure Booster System

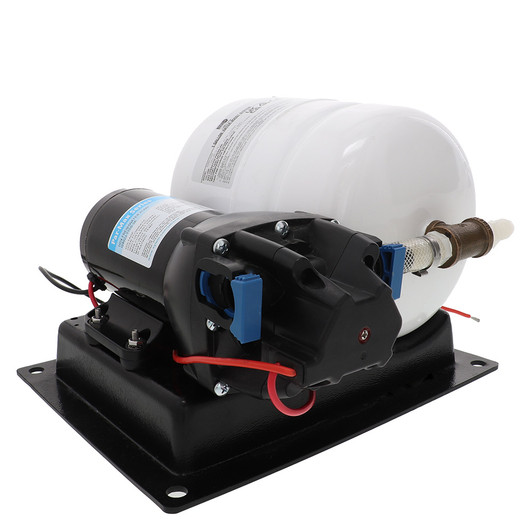

The Jabsco 12V Marine Water Pressure Booster System (part 52560-0010) is a complete freshwater pressure set mounted on one panel and ready to plumb in. The pump, pressure switch, accumulator tank, and inlet strainer arrive already assembled and wired together. That removes the guesswork of matching separate parts and saves most of the fitting work under the cabin sole.

Because everything is on a single panel, you only connect the tank feed, the outlet to the fixtures, and the 12V power lead. The accumulator smooths out flow, so showers and faucets run evenly instead of surging as the pump cycles. The pump can run dry without damage if the tank empties, which protects it on long trips.

Thermal overload protection shuts the motor down if it overheats, and the system carries ISO 8846 MARINE ignition protection for use in engine and fuel spaces. This 12V version suits most small and midsize boats running a standard 12-volt house bank. Choose a mounting spot below the tank outlet if you can, with the strainer bowl easy to reach for cleaning. The 24V version and other pumps are in our fresh water and washdown pumps.

• 12V, part 52560-0010
• Pump, switch, accumulator, and strainer on one panel
• Run-dry and thermal overload protection
• ISO 8846 MARINE ignition protected
