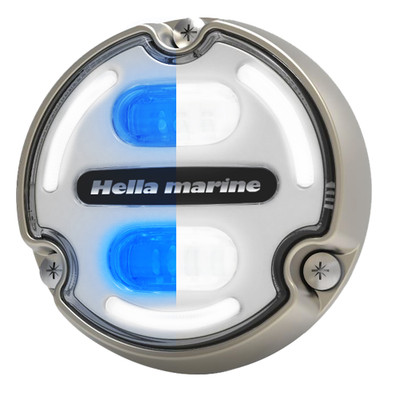

Hella Apelo A2 Bronze 3000-Lumen Underwater Light

The Hella Apelo A2 underwater light combines a broad underwater beam with an illuminated perimeter for a layered lighting effect at the transom. The optics favor horizontal spread and a tighter vertical angle, directing the output through the surrounding water instead of wasting light upward or deep below the hull. That pattern is useful for creating an even glow around swim platforms and stern areas after dark. The edge illumination adds a second visual cue around the fixture when owners want the installation itself to become part of the boat's appearance.

The fixture is fully sealed and electronically protected for marine use, while the high-strength lens is built to tolerate impact and long-term exposure. Internal thermal management helps control heat and is designed to protect the light if it is operated before the boat is in the water. Because there is no serviceable bulb chamber, routine maintenance centers on inspecting the mounting, cable seal, and exterior lens condition. That simplified service profile is helpful for a fixture installed low on the transom.

The surface-mount body avoids the large through-hull opening required by some high-output underwater lights. Hella describes the Apelo design as suitable for hulls made from many common boatbuilding materials, giving refitters flexibility when selecting a mounting surface. Choose the location with drives, tabs, steps, and trailer hardware in mind so those items do not block the broad optical pattern. A flat mounting surface and carefully sealed cable passage are essential for a durable installation.

• Broad optical pattern creates an even wash through the water
• Illuminated perimeter adds a visible edge effect around the fixture
• Fully sealed electronics reduce maintenance points
• Thermal protection supports safe testing and demanding operation
• Surface mounting minimizes the required hull opening

Position the light so the optical spread is not shadowed by underwater hardware and the cable can enter the hull at a properly sealed location. A clean installation also makes future inspection and service easier because the connections remain accessible and organized. For related products and compatible marine hardware, browse more Underwater Lights.
