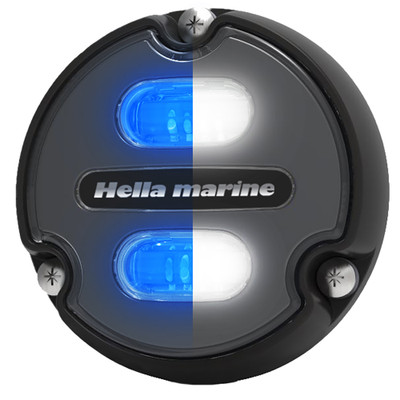

Hella Apelo A1 Black 1800-Lumen Underwater Light

The Hella Apelo A1 underwater light is designed to create a broad band of illumination rather than a narrow spotlight beneath the hull. Hella shapes the optics with a wide horizontal spread and a tighter vertical angle so more of the output is directed through the water where it is visible. The fixture can light the water around a swim platform, enhance the boat's appearance at anchor, or add usable illumination around the transom after dark. The A1 design keeps the package simple while still providing a broad underwater illumination pattern.

The housing and high-strength nylon lens are engineered for corrosion resistance and repeated exposure to the marine environment. The light is completely sealed and electronically protected, which keeps the internal components isolated from water and reduces the need for serviceable seals. Advanced thermal management allows the fixture to protect itself from heat and is designed to prevent damage if the light is operated out of the water. That protection is particularly useful during testing, launching, and maintenance when the fixture may be energized before the hull is submerged.

The surface-mount format avoids the large through-hull openings required by some underwater lighting systems. Hella states that the fixture can be used on hulls made from a wide range of common boatbuilding materials, giving installers more flexibility during refit work. Final positioning should account for trim tabs, drives, steps, and other underwater hardware that could block the beam or create unwanted shadows. A clean mounting surface and carefully sealed cable passage are important for a durable installation.

• Optics spread light broadly across the water instead of creating a narrow hotspot
• Sealed electronics are protected from direct water exposure
• Thermal management protects the light during demanding operation
• Surface-mount design limits the size of the hull penetration
• Suitable for installation on a wide range of hull materials

Plan the cable route and mounting position together so the beam remains clear of running gear and the hull penetration can be sealed correctly. A clean installation also makes future inspection and service easier because the connections remain accessible and organized. For related products and compatible marine hardware, browse more Underwater Lights.
