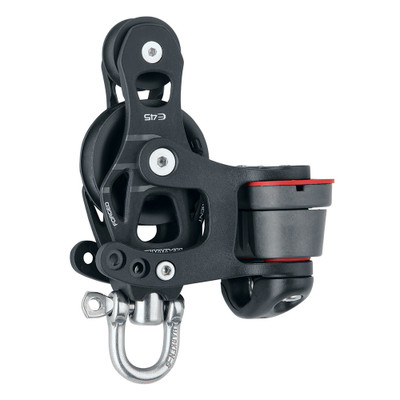

Harken 45mm Element Fiddle Block Swivel 150 Cam

The Harken 45mm Element Fiddle Block combines a large and small sheave in a stepped fiddle configuration, giving a multi-part purchase system mechanical advantage in a single housing, with a swiveling head and integrated 150 cam cleat for quick line locking.

Element blocks combine forged aluminum sideplates and compound curves for genuine strength in a contemporary, robust design, using the minimum metal necessary alongside a proven journal bearing to keep this block priced well below Harken's earlier equivalent lines.

Rated for a 408kg (900 lb) maximum working load with an 8mm (5/16 inch) max line diameter, this fiddle block is sized for smaller control lines that need quick, secure cleating. Hardcoat-anodized sideplates and a composite bearing sheave resist corrosion for long service life. Browse more sailing hardware at CritPro.

Key Features: sheave diameter: 45mm (1-3/4 inch), max line diameter: 8mm (5/16 inch), max working load: 408kg (900 lbs), configuration: Swivel with 150 Cam Cleat, sideplate material: Forged Aluminum, finish: Hardcoat Anodized.

Frequently Asked Questions

What is the maximum working load? 408kg (900 lbs).

What size sheave does it use? 45mm (1-3/4 inch).

What is the maximum line diameter? 8mm (5/16 inch).
