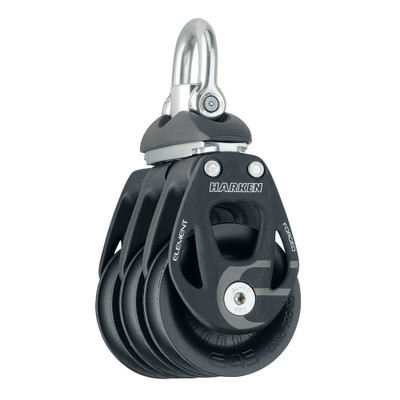

Harken 45mm Triple Element Block with Swivel
- UPC:
- 097653283881
- MPN:
- 6240
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Fast shipping from Georgia
Description
The Harken 45mm Triple Element Block with Swivel puts three sheaves in a swiveling head, giving a complex purchase system serious mechanical advantage while letting the block rotate freely to track changing load direction.
Element blocks combine forged aluminum sideplates and compound curves for genuine strength in a contemporary, robust design, using the minimum metal necessary alongside a proven journal bearing to keep this block priced well below Harken's earlier equivalent lines.
Rated for a 1050kg (2315 lb) maximum working load and 2100kg (4630 lb) breaking load, this triple block handles a 12mm (1/2 inch) max line diameter at just 265g (9.3 oz). Hardcoat-anodized sideplates resist corrosion for long service life. Browse more sailing hardware at CritPro.
Key Features: sheave diameter: 45mm (1-3/4 inch), overall length: 108mm (4-1/4 inch), weight: 265g (9.3 oz), shackle pin: 6mm (1/4 inch), max line diameter: 12mm (1/2 inch), max working load: 1050kg (2315 lbs), breaking load: 2100kg (4630 lbs), configuration: Swivel, sideplate material: Forged Aluminum.
Frequently Asked Questions
What is the maximum working load? 1050kg (2315 lbs).
What size sheave does it use? 45mm (1-3/4 inch).
What is the maximum line diameter? 12mm (1/2 inch).
Specifications
- MPN:
- 6240
- Sheave Diameter:
- 45mm (1-3/4 inch)
- Overall Length:
- 108mm (4-1/4 inch)
- Weight:
- 265g (9.3 oz)
- Shackle Pin:
- 6mm (1/4 inch)
- Max Line Diameter:
- 12mm (1/2 inch)
- Max Working Load:
- 1050kg (2315 lbs)
- Breaking Load:
- 2100kg (4630 lbs)
- Configuration:
- Swivel
- Sideplate Material:
- Forged Aluminum
Description
The Harken 45mm Triple Element Block with Swivel puts three sheaves in a swiveling head, giving a complex purchase system serious mechanical advantage while letting the block rotate freely to track changing load direction.
Element blocks combine forged aluminum sideplates and compound curves for genuine strength in a contemporary, robust design, using the minimum metal necessary alongside a proven journal bearing to keep this block priced well below Harken's earlier equivalent lines.
Rated for a 1050kg (2315 lb) maximum working load and 2100kg (4630 lb) breaking load, this triple block handles a 12mm (1/2 inch) max line diameter at just 265g (9.3 oz). Hardcoat-anodized sideplates resist corrosion for long service life. Browse more sailing hardware at CritPro.
Key Features: sheave diameter: 45mm (1-3/4 inch), overall length: 108mm (4-1/4 inch), weight: 265g (9.3 oz), shackle pin: 6mm (1/4 inch), max line diameter: 12mm (1/2 inch), max working load: 1050kg (2315 lbs), breaking load: 2100kg (4630 lbs), configuration: Swivel, sideplate material: Forged Aluminum.
Frequently Asked Questions
What is the maximum working load? 1050kg (2315 lbs).
What size sheave does it use? 45mm (1-3/4 inch).
What is the maximum line diameter? 12mm (1/2 inch).
Specifications
- MPN:
- 6240
- Sheave Diameter:
- 45mm (1-3/4 inch)
- Overall Length:
- 108mm (4-1/4 inch)
- Weight:
- 265g (9.3 oz)
- Shackle Pin:
- 6mm (1/4 inch)
- Max Line Diameter:
- 12mm (1/2 inch)
- Max Working Load:
- 1050kg (2315 lbs)
- Breaking Load:
- 2100kg (4630 lbs)
- Configuration:
- Swivel
- Sideplate Material:
- Forged Aluminum
Specifications
MPN, Sheave Diameter, Overall Length, Weight, Shackle Pin, Max Line Diameter, Max Working Load, Breaking Load, Configuration, Sideplate Material,
Specifications
- MPN:
- 6240
- Sheave Diameter:
- 45mm (1-3/4 inch)
- Overall Length:
- 108mm (4-1/4 inch)
- Weight:
- 265g (9.3 oz)
- Shackle Pin:
- 6mm (1/4 inch)
- Max Line Diameter:
- 12mm (1/2 inch)
- Max Working Load:
- 1050kg (2315 lbs)
- Breaking Load:
- 2100kg (4630 lbs)
- Configuration:
- Swivel
- Sideplate Material:
- Forged Aluminum
