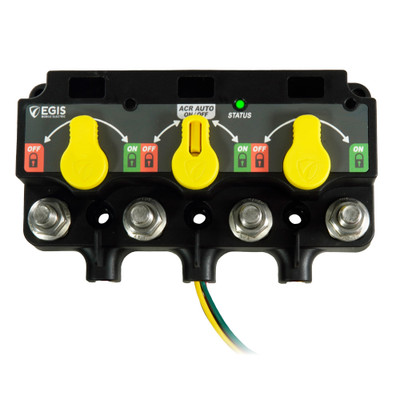

Egis XD Series Triple Flex 2 Mechanical Switch-ACR

The Egis XD Series Triple Flex 2 Mechanical Switch-ACR is a three-function module with mechanical switching on the outer positions and a central automatic charging relay.

Mechanical switching rather than solenoid relays on the outer positions is the distinction, and it changes what happens when power fails. A mechanical switch holds its position with no current at all and can be operated with the electrical system dead. A solenoid needs power to change state, which is a problem precisely when the batteries are flat.

The central ACR still handles charge sharing automatically between the banks. So the arrangement gives automatic charging with manual switching, which many owners prefer on a boat where reliability matters more than remote control.

It is rated 500A continuous and 1500A cranking across an 8-36V DC range. Sealed IP67/IP6K9K construction with stainless-steel cable studs and large M6 or 1/4-20 mounting holes suits a permanent installation. Explore more Relays, Combiners & Disconnects.

• Mechanical switches hold position with no current
• They work with the electrical system dead
• A solenoid needs power exactly when the bank is flat
• Automatic charging with manual switching
