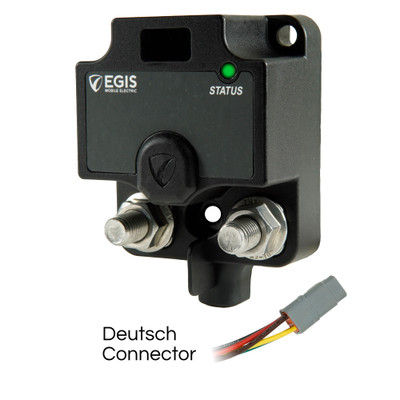

Egis XD Series Single Flex 2 ACR-Relay, DTM Conn

The Egis XD Series Single Flex 2 ACR-Relay is a two-function module with charge sharing and battery switching under DTM control, rated 500A continuous.

Two independent start or engine-isolation inputs support multi-engine and independent charging arrangements. On a twin-engine boat that lets each charging source be isolated properly rather than treating both as one, which is what stops the alternators working against each other.

Combining an ACR and a relay in one module removes a second installation and the cable between them. In a battery compartment already carrying switches, fuses and busbars, mounting space is usually the constraint rather than cost.

It works across an 8-36V DC range, so one part covers 12V and 24V systems. The bi-stable solenoid draws current only when changing position, and the eight-volt lower limit holds it through a cranking sag. Explore more Relays, Combiners & Disconnects.

• Two engine-isolation inputs for multi-engine boats
• It stops the alternators working against each other
• ACR and relay in one module, one installation
• 8V lower limit holds through a cranking sag
