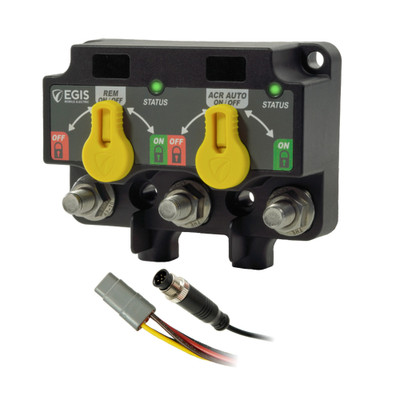

Egis Dual XD NMEA 2000 ACR/Relay, 8-Position DT

(0) Write a Review
UPC 850067590194
Availability In Stock
UPC:
850067590194
MPN:
9821-8350
Condition:
New
Availability:
In Stock
Shipping:
$5.95 Flat Rate (Per Order)
$251.95
MSRP: $300.40

Fast shipping from Georgia

Ships within 1 business day
Trusted by 28,000+ customers
Established Since 2001
30-day hassle-free returns
Condition:
New
Shipping:
$5.95 flat rate per order

Options

$251.95
MSRP: $300.40
Or
Secure checkout Protected payments

Description

The Egis Dual XD ACR/Relay with Knobs (NMEA 2000, 8 Position DT) features bullet-proof construction, sealed to IP67/IP6K9K with high-temperature electronics and materials allowing mounting anywhere. It is designed for boaters who want stainless steel cable lug studs and large mounting holes accepting 1/4-20 / M6 attachment hardware.

Rated 500A continuous / 1600A cranking per switch, this module supports all standard marine electrical systems. An intuitive manual control option simplifies operation and awareness of manual override state, whether locked off or locked on — a feature not available on competitive solutions. Simple programmability via dip switches gives each relay function significant flexibility for OEMs and installers, with 90-95% less off-state current compared to competitive multi-device solutions. Browse more options in our power monitoring and DC-DC conversion category.

Key Features

  • IP67/IP6K9K sealed
  • 500A continuous/1600A cranking
  • dip switch programmable
  • Configuration: ACR-Relay
  • Weight: 2 lb

Frequently Asked Questions

What is this module's water/dust rating? IP67/IP6K9K sealed.

What is this module's current rating? 500A continuous, 1600A cranking per switch.

How much less off-state current does this module draw? 90-95% less than competitive multi-device solutions.

Specifications

Connector Type:
8 Position DT
Rating:
500A Continuous / 1600A Cranking Per Switch

Description

The Egis Dual XD ACR/Relay with Knobs (NMEA 2000, 8 Position DT) features bullet-proof construction, sealed to IP67/IP6K9K with high-temperature electronics and materials allowing mounting anywhere. It is designed for boaters who want stainless steel cable lug studs and large mounting holes accepting 1/4-20 / M6 attachment hardware.

Rated 500A continuous / 1600A cranking per switch, this module supports all standard marine electrical systems. An intuitive manual control option simplifies operation and awareness of manual override state, whether locked off or locked on — a feature not available on competitive solutions. Simple programmability via dip switches gives each relay function significant flexibility for OEMs and installers, with 90-95% less off-state current compared to competitive multi-device solutions. Browse more options in our power monitoring and DC-DC conversion category.

Key Features

  • IP67/IP6K9K sealed
  • 500A continuous/1600A cranking
  • dip switch programmable
  • Configuration: ACR-Relay
  • Weight: 2 lb

Frequently Asked Questions

What is this module's water/dust rating? IP67/IP6K9K sealed.

What is this module's current rating? 500A continuous, 1600A cranking per switch.

How much less off-state current does this module draw? 90-95% less than competitive multi-device solutions.

Specifications

Connector Type:
8 Position DT
Rating:
500A Continuous / 1600A Cranking Per Switch

Specifications

Connector Type, Rating,

Specifications

Connector Type:
8 Position DT
Rating:
500A Continuous / 1600A Cranking Per Switch
