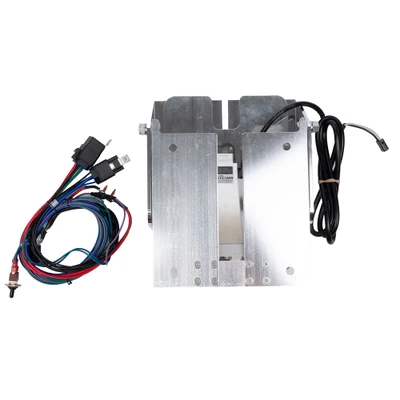

CMC PT-35 Tilt and Trim for Motors Up to 35hp

The CMC PT-35 Tilt & Trim brings power tilt and trim to outboards up to 35 hp, motors that don't typically come with hydraulic tilt and trim built in from the factory the way larger outboards do.

A 5 1/2-inch setback improves stability and handling by moving the motor's weight and thrust point away from the transom, and 1/4-inch 6061 T6 extruded aluminum construction with stainless steel fasteners keeps the unit lightweight at 24 lbs without sacrificing strength. It accommodates both clamp-on and bolt-on motors without needing a separate adapter.

The electric hydraulic actuator is rated for 7,853 lbs of thrust and delivers a full 84 degrees of trim and tilt range. The motor mounting area measures 11 inches inside, so it's worth checking the clamp or bolt spacing on the specific motor against that limit before ordering, since mounting bolts aren't included with the unit. Explore more jack plates & accessories.

• Power tilt and trim for outboards up to 35 hp
• 5 1/2" setback, 84° of trim and tilt range
• 1/4" 6061 T6 aluminum with stainless steel fasteners
• Fits clamp-on or bolt-on motors without an adapter
