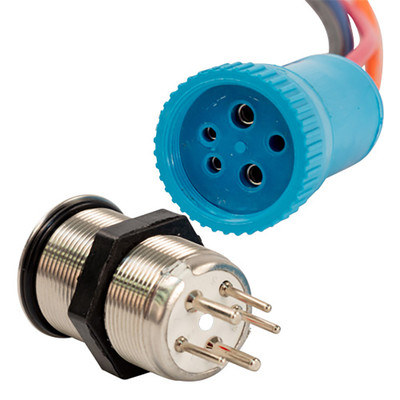

Bluewater 22mm Nav/Anchor Push Button Switch, 4-Ft Lead
- MPN:
- 9059-3114-4
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
Fast shipping from Georgia
Description
The Bluewater 22mm Nav/Anchor Push Button Switch gives dedicated navigation and anchor light control with three LED states, rated IP69K.
This is the Off/On/On switch configured for a specific job, replacing a larger rocker while keeping the two-mode function. Navigation lights and anchor light are the classic two-position circuit on a boat, and a dedicated switch means the labelling matches the function rather than relying on a separate legend.
Blue when off, green at the first position and red at the second shows which mode is running. That matters more on this circuit than most, since running navigation lights at anchor or an anchor light under way both send the wrong signal to other vessels.
Twenty-two millimeters replaces a larger rocker position, freeing dashboard space on a crowded helm. The stainless-steel-plated body and included gasket give an IP69K rating, with a 4-foot lead supplied. Explore more marine electrical switches.
- The Off/On/On switch configured for nav and anchor
- Labelling matches the function, not a separate legend
- LED shows which mode is running
- Wrong lights at anchor or under way misinform others
Specifications
- Amperage:
- 20A
- Cycle Life:
- 50,000
- Lead Length:
- 4 ft
- LED Color:
- Blue/Green/Red
- Product Type:
- Electrical Switch
- Size:
- 22 mm
- Switch Action:
- Nav/Anc
- Voltage:
- 12-24V
- Water Resistance:
- IP69K
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Bluewater
- Feed MPN:
- 9059-3114-4
Description
The Bluewater 22mm Nav/Anchor Push Button Switch gives dedicated navigation and anchor light control with three LED states, rated IP69K.
This is the Off/On/On switch configured for a specific job, replacing a larger rocker while keeping the two-mode function. Navigation lights and anchor light are the classic two-position circuit on a boat, and a dedicated switch means the labelling matches the function rather than relying on a separate legend.
Blue when off, green at the first position and red at the second shows which mode is running. That matters more on this circuit than most, since running navigation lights at anchor or an anchor light under way both send the wrong signal to other vessels.
Twenty-two millimeters replaces a larger rocker position, freeing dashboard space on a crowded helm. The stainless-steel-plated body and included gasket give an IP69K rating, with a 4-foot lead supplied. Explore more marine electrical switches.
- The Off/On/On switch configured for nav and anchor
- Labelling matches the function, not a separate legend
- LED shows which mode is running
- Wrong lights at anchor or under way misinform others
Specifications
- Amperage:
- 20A
- Cycle Life:
- 50,000
- Lead Length:
- 4 ft
- LED Color:
- Blue/Green/Red
- Product Type:
- Electrical Switch
- Size:
- 22 mm
- Switch Action:
- Nav/Anc
- Voltage:
- 12-24V
- Water Resistance:
- IP69K
- Google Feed:
- Yes
- Bing Feed:
- Yes
- Pinterest Feed:
- Yes
- Feed Brand:
- Bluewater
- Feed MPN:
- 9059-3114-4
