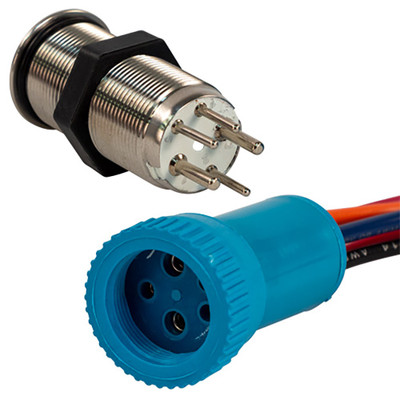

Bluewater 19mm 1 ft Lead Nav/Anchor Push Button Switch

The Bluewater Nav/Anc push button switch combines common vessel-lighting selections in a compact metal control. It lets the operator manage navigation and anchor-light functions from one panel position instead of using separate switches. A prewired lead simplifies routing into the helm harness, which is useful during both new construction and dashboard refits. The maintained action keeps the selected lighting state engaged until the operator changes it.

The switch body is stainless steel, and an included gasket helps seal the panel opening in exposed locations. Integrated illumination provides a visible nighttime reference and changes with the selected operating state. Bluewater uses separate rear contacts for switching and illumination, helping keep the lighting circuit organized behind the dash. The compact round format works well alongside other push-button controls in a coordinated helm layout.

• Combines navigation and anchor-light control in one button
• Prewired lead for easier harness routing
• Included gasket supports a sealed installation
• Separate terminals for switching and illumination

The switch installs through a properly sized panel opening and supports material up to 6 mm thick. Color-coded contacts help reduce confusion when the navigation-light circuit is connected and later serviced. For additional helm switching options, browse Marine Electrical Switches.
