BEP Marine 8-Stud 650A Pro Installer Bus Bar

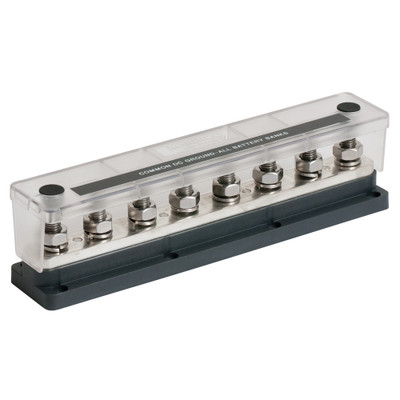

The BEP Marine Pro Installer 8-Stud Bus Bar is a 650A distribution bar with long threaded studs and a clear polycarbonate cover.

Eight studs give a central point for battery, charging, inverter and other heavy-current circuits, which is what stops a DC system turning into a stack of connections on one battery post. Long threaded studs accept several large lugs each, so one stud handles multiple connections where the installation needs them.

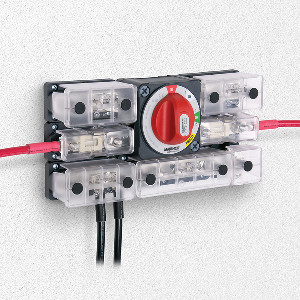

Pro Installer bars share a common interconnection height across the series, so bars and other components in the range build into compact modular assemblies rather than being fitted piecemeal. Snap-out side skirts open extra cable-entry points, and radiused ends ease routing where large conductors approach from different directions.

Plated brass nuts against stainless studs reduce thread galling during tightening, which is the failure that ruins a stud on the second or third service. A clear polycarbonate cover insulates and protects three sides without getting in the way of cable routing, and the compact footprint saves panel space. Explore more bus bars and power distribution.

• Eight studs, each taking several large lugs
• Common height across the Pro Installer series
• Brass nuts on stainless studs resist thread galling
• Clear cover protects three sides, rated 650A
