Ancor RGB Lighting and Speaker Cable 100-Foot Spool

The Ancor RGB and Speaker Combination Cable is a 100-foot spool with four 18 AWG RGB conductors and two 16 AWG speaker conductors.

A hundred feet suits a single installation rather than a whole boat, which is the difference from the 250-foot spool of the same cable. One cockpit speaker and lighting run, or a pair of them, fits comfortably in that length without leaving a part-used spool on a shelf.

Combining RGB control and speaker wiring in one jacket removes a whole cable pull, since both usually terminate in the same places. Speakers and accent lighting go to the same locations on most boats, and pulling one cable instead of two halves the work through bulkheads and under decks.

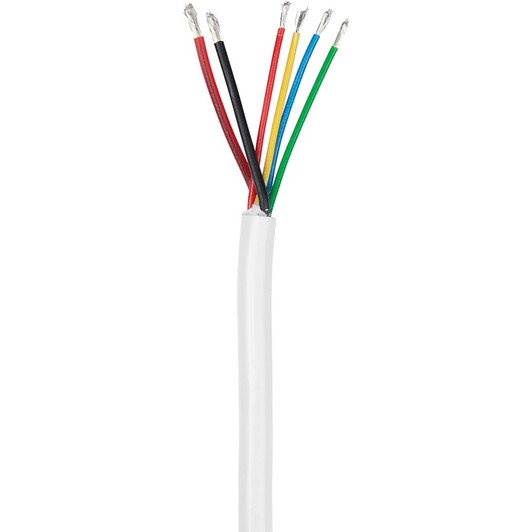

Four 18 AWG conductors handle RGB and are color coded yellow, red, blue and green, while two 16 AWG conductors take the speaker circuit in black and red. The heavier gauge on the speaker pair is deliberate, since audio needs more copper than lighting control signal does. Explore more duplex and triplex cable.

• 100 feet for one installation, not a whole boat
• The 250-foot spool covers a full fit-out
• RGB and speaker in one jacket, one pull
• 16 AWG on the audio pair, 18 on the RGB
