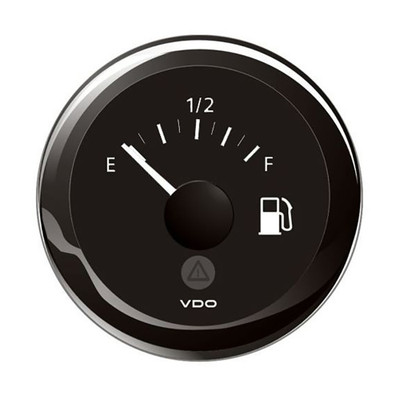

Veratron ViewLine 52mm Black Tank Level Gauge

The Veratron ViewLine Tank Level Gauge is a 52mm instrument with a black dial and bezel, reading empty to full across a 3-180 ohm range.

The ohm range is the number to check before ordering. A gauge reads the resistance a sender puts out, and 3-180 ohm is the European standard where American senders commonly run 240-33 ohm. Pair the wrong one and the needle sits at the wrong end of the scale, which is the most common mistake in fitting a level gauge.

At 52mm this is the 2-1/16 inch size, the smaller of the two standard gauge holes, so it drops into an existing panel cutout. ViewLine is a modular series, meaning the tank gauge shares dial styling and bezel with the fuel, temperature and voltage instruments alongside it. Explore more marine gauges.

• 3-180 ohm range, the European sender standard
• Check the sender before ordering, not after
• 52mm, the 2-1/16 inch panel cutout
• Black dial and bezel, matching the ViewLine range
