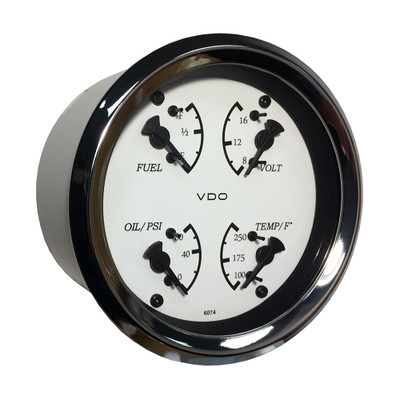

VDO Cockpit Marine White 85mm 4-in-1 Gauge

The VDO Cockpit Marine 4-in-1 Gauge combines water temperature, fuel level, and voltage monitoring into a single 85mm (3-3/8 inch) dial, cutting down on how many separate holes need cutting into the dash.

Water temperature reads 100 to 250°F off a 450-29 ohm sender matched to common 240°F/250°F marine temperature senders, fuel level reads E to F off a 240-33 ohm sender, and the voltmeter covers 8 to 16 VDC.

It uses common 3/16-inch (4mm) electrical ring terminal connectors and fits the standard common 3-3/8-inch (85mm) dashboard hole, in a white dial and bezel finish. See what else we carry in marine gauges.

• Combines water temp, fuel level, and voltage in one gauge
• Water temp: 100-250°F, 450-29 ohm sender
• Fuel level: E-F scale, 240-33 ohm sender
• Fits a standard 3-3/8" (85mm) dashboard hole
