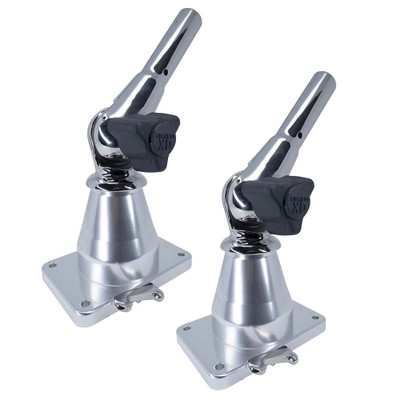

Tigress XD Bay Series Top Mount Outrigger

The Tigress XD Bay Series Top Mounts are a pair of outrigger mounts for sportfishing boats up to 40 feet. They accept all Tigress XD outriggers with 1-1/8 inch butt diameter. The upper arm locks at 19 angles in 10 degree steps.

There are 24 locking rotation positions in 15 degree increments, using Tigress's 316L stainless tooth locking design with a heavy-duty spring return. Horizontal stops allow for trailering and bridges. A large 3-lobe UV knob changes and locks elevation, and a side lever is easy to use.

The 14.5mm thick XD aluminum base uses a 3 x 5 inch four-bolt pattern with 5/16 inch fasteners and fits standard 4 x 6 inch mounting plates. Construction is 316L stainless and anodized aluminum, fully sealed with UV protection, and the mount can be set up for either side. Confirm rail fit, ring diameter and available clearance together, especially when the optic has a large objective bell. Browse more outriggers and rigging.

• For boats up to 40 feet
• Fits 1-1/8 inch XD outriggers
• 24 locking positions
• Fits standard 4 x 6 inch plates
• Accepts all Tigress XD 1-1/8” butt diameter Outriggers
