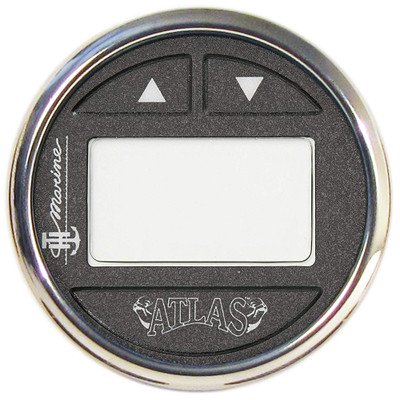

T-H Marine ATLAS Stainless Hydraulic Gauge Kit, 4/8-Inch

The T-H Marine ATLAS digital LED gauge kit gives an at-a-glance position display for compatible ATLAS hydraulic jack plates. The numbered readout runs from 0 to 20, with each number representing 1/4 inch of jack-plate rise, helping the operator return to preferred engine-height settings more consistently.

The gauge is designed around ATLAS jack plates that are pre-drilled for the sender installation, simplifying integration compared with fabricating a custom position-sensing arrangement. The specific kit matches the jack-plate setback range named in the product title and uses the stated bezel finish for the helm display.

Confirm ATLAS jack-plate model and setback, gauge-kit compatibility, sender mounting location, dashboard space, wiring route, and electrical requirements before installation. Follow the supplied calibration procedure so the display corresponds accurately with jack-plate movement, then test the full travel range before operating the boat.

• The digital LED display helps the operator track engine-height adjustment.
• Numbered positions provide a repeatable reference during setup and operation.
• Each displayed number represents 1/4 inch of rise.
• Pre-drilled jack-plate provisions simplify the sender installation.
