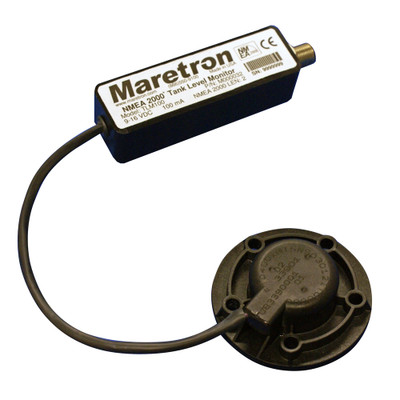

The Maretron TLM100 Ultrasonic Tank Level Monitor uses ultrasonic sensing rather than a float or resistive sender, reading tank depth up to 40" and broadcasting the result over NMEA 2000 for viewing on any compatible display, including the Maretron DSM250.
It handles just about any tank aboard, diesel, drinking water, gray and black water, or oil, and where most senders only work correctly on a rectangular tank, this one can be calibrated for odd shapes so the reported level reflects reality rather than a rough guess. Mounting covers a standard SAE J1810 5-hole pattern, or 1.5" NPT and 1.25" BSP threaded openings with the right adapter, and an optional focus tube helps keep readings accurate on planing hulls that spend real time bow-up underway.
SAE J1810 5-hole mount, or 1.5" NPT/1.25" BSP via adapters. NMEA 2000 certified, key component of Maretron's N2KView system.
Find more in our marine networking.
The Maretron TLM100 Ultrasonic Tank Level Monitor uses ultrasonic sensing rather than a float or resistive sender, reading tank depth up to 40" and broadcasting the result over NMEA 2000 for viewing on any compatible display, including the Maretron DSM250.
It handles just about any tank aboard, diesel, drinking water, gray and black water, or oil, and where most senders only work correctly on a rectangular tank, this one can be calibrated for odd shapes so the reported level reflects reality rather than a rough guess. Mounting covers a standard SAE J1810 5-hole pattern, or 1.5" NPT and 1.25" BSP threaded openings with the right adapter, and an optional focus tube helps keep readings accurate on planing hulls that spend real time bow-up underway.
SAE J1810 5-hole mount, or 1.5" NPT/1.25" BSP via adapters. NMEA 2000 certified, key component of Maretron's N2KView system.
Find more in our marine networking.
