Maretron MPower 12-Channel DC Load Controller Module
$520.95
MSRP:
$595.00

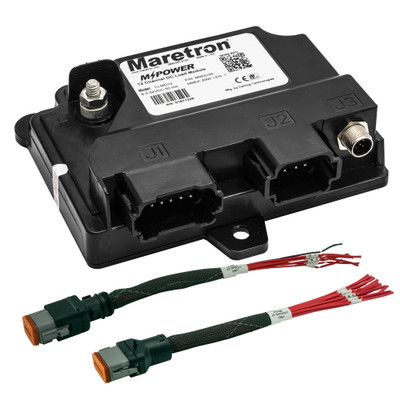

Maretron MPower 12-Channel DC Load Module with Cable
- UPC:
- 873804004181
- MPN:
- CLMD12-R
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $5.95 Flat Rate (Per Order)
$607.95
MSRP:
$695.00
Fast shipping from Georgia
✓
Ships within 1 Business Day
✓
Trusted by 28,000+ customers
✓
Authorized Dealer
✓
30 Day Hassle-Free Returns
Condition:
New
Shipping:
$5.95 Flat Rate (Per Order)
Description
The Maretron MPower 12 Channel DC Load Module (with 12" Pigtail Adapter Cable for J1 & J2 Connectors) is a compact DC Load Controller Module designed for vessels of all sizes with smaller loads. It is designed for boaters who want two breakers handling up to 12 amps, six handling up to 10 amps, and four handling up to 5 amps, for a total current capacity of 75 amps.
Circuits can be paralleled, and each of the 12 breakers can be set to trip at lower current levels using Maretron N2KAnalyzer V3 software. The module has inputs for up to 7 hard-wired switches usable for switching breaker states or as inputs for other data like bilge alarms or hatch positions, handling lights, pumps, motors, and electronics while reporting current through each circuit. Browse more options in our instruments and compasses category.
Key Features: 12 channels, 75A total capacity, includes pigtail cable, up to 7 switch inputs.
Frequently Asked Questions
What is this module's total current capacity? 75 amps across 12 channels.
What comes included with this module? A 12-inch pigtail adapter cable for J1 & J2 connectors.
How many hard-wired switch inputs does this module support? Up to 7.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Specifications
- MPN:
- CLMD12-R
- Model:
- MPower CLMD12
- Channels:
- 12 (2x12A, 6x10A, 4x5A)
- Total Capacity:
- 75A
- Includes:
- 12" Pigtail Adapter Cable for J1 & J2
- Inputs:
- Up to 7 Hard-Wired Switches
- Weight:
- 2.3 lbs
Description
The Maretron MPower 12 Channel DC Load Module (with 12" Pigtail Adapter Cable for J1 & J2 Connectors) is a compact DC Load Controller Module designed for vessels of all sizes with smaller loads. It is designed for boaters who want two breakers handling up to 12 amps, six handling up to 10 amps, and four handling up to 5 amps, for a total current capacity of 75 amps.
Circuits can be paralleled, and each of the 12 breakers can be set to trip at lower current levels using Maretron N2KAnalyzer V3 software. The module has inputs for up to 7 hard-wired switches usable for switching breaker states or as inputs for other data like bilge alarms or hatch positions, handling lights, pumps, motors, and electronics while reporting current through each circuit. Browse more options in our instruments and compasses category.
Key Features: 12 channels, 75A total capacity, includes pigtail cable, up to 7 switch inputs.
Frequently Asked Questions
What is this module's total current capacity? 75 amps across 12 channels.
What comes included with this module? A 12-inch pigtail adapter cable for J1 & J2 connectors.
How many hard-wired switch inputs does this module support? Up to 7.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Specifications
- MPN:
- CLMD12-R
- Model:
- MPower CLMD12
- Channels:
- 12 (2x12A, 6x10A, 4x5A)
- Total Capacity:
- 75A
- Includes:
- 12" Pigtail Adapter Cable for J1 & J2
- Inputs:
- Up to 7 Hard-Wired Switches
- Weight:
- 2.3 lbs
Specifications
MPN, Model, Channels, Total Capacity, Includes, Inputs, Weight,
Specifications
- MPN:
- CLMD12-R
- Model:
- MPower CLMD12
- Channels:
- 12 (2x12A, 6x10A, 4x5A)
- Total Capacity:
- 75A
- Includes:
- 12" Pigtail Adapter Cable for J1 & J2
- Inputs:
- Up to 7 Hard-Wired Switches
- Weight:
- 2.3 lbs
