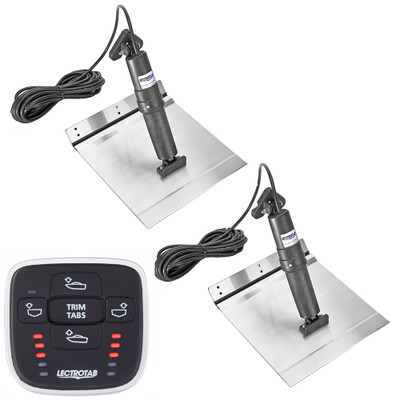

Lectrotab 9 x 12 Aluminum MLC-1 Trim Tab Kit

The Lectrotab 9 x 12 Aluminum MLC-1 Trim Tab Kit combines 9 x 12 in aluminum trim planes with the MLC-1 microprocessor control for boats in the 16 to 25 ft range. The 6005-T5 aluminum alloy planes receive a corrosion-resistant epoxy coating and use polypropylene hinges, giving the system a lightweight, corrosion-conscious construction.

Two sealed electric actuators move the tabs without a hydraulic pump, reservoir, or oil lines. Internal pressure equalization and a brake mechanism help prevent unwanted tab movement during operation. The MLC-1 control distinguishes this package from the One-Touch version by providing simultaneous tab movement and LED position indication that adapts to ambient light conditions.

The matched package includes both trim planes, two actuators with attached cables, the MLC-1 helm control, and installation instructions. It is intended for operators who want the 9 x 12 in aluminum tab format with the additional control behavior provided by the MLC-1 system.

• MLC-1 microprocessor control supports simultaneous tab movement
• LED position indication automatically adapts to ambient light
• Sealed electric actuators require no hydraulic power unit or fluid lines
• Internal brake system helps maintain tab position while operating
• Planes, actuators, cabling, control, and instructions are included
