Lectrotab 12 x 9 Aluminum Rocker Trim Tab Kit

The Lectrotab 12 x 9 Aluminum Alloy Trim Tab Kit pairs a full tab and actuator set with a flat rocker switch in one box. It is designed for 18' to 29' boats that want a complete, ready-to-wire trim tab system.

The aluminum alloy design is uniquely suited to aluminum-hulled boats and gives every boater an economical, equally durable alternative to stainless. Each tab uses an extremely strong "no-break" polypropylene hinge, tested over 300,000 cycles to a 90° bend without failure, and the precision-engineered actuator delivers quiet, non-hydraulic, maintenance-free operation with no oil to leak and nothing to install inside the boat. Lectrotab's flat rocker switch has improved sealing against water entry and a recessed design to prevent breaking, with an "instant stop" circuit that engages the moment the switch is released to prevent actuator over-run. Browse more options in our trim tabs and trim systems category.

Key Features

• suited to 18' to 29' boats
• marine-grade 6005-T5 aluminum alloy
• sealed with a corrosion-resistant epoxy coating
• 12V actuators rated to push 1000 lbs of force
• internal pressure equalization and brake system prevents unwanted movement
• sealed non-metallic actuator housing

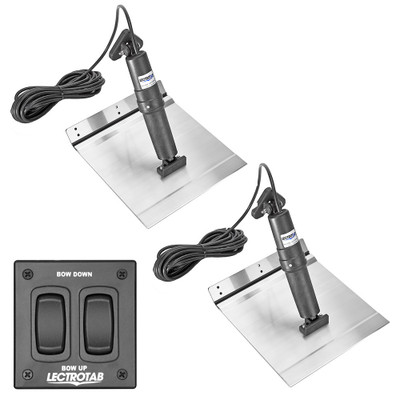

• In The Box: One (1) Flat Rocker Switch, two (2) actuators with 23' (7 m) cables, instruction manual, sold as a kit
• Actuator Cable Length: 23 ft
• Weight: 14.55 lb

Frequently Asked Questions

What boat length is this trim tab set built for? 18' to 29' boats.

Does this include a control switch? Yes, it includes a flat rocker switch.

What material are these tabs made from? marine-grade 6005-T5 aluminum alloy, sealed with a corrosion-resistant epoxy coating.
