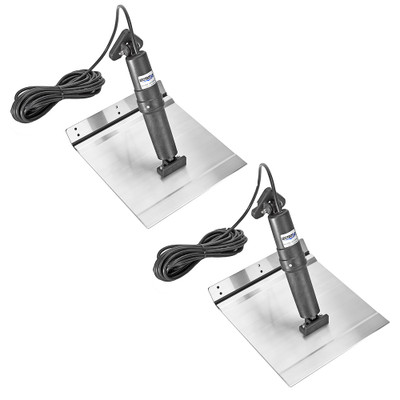

Lectrotab 12 x 9 Aluminum Alloy 12V Trim Tab

The Lectrotab 12 x 9 Aluminum Alloy Trim Tab is a bare tab and actuator set built for boaters who already have a control switch, or plan to add one of Lectrotab's controls separately. It is designed for 18' to 29' boats that need reliable, self-contained trim tab hardware without a bundled control.

The aluminum alloy design is uniquely suited to aluminum-hulled boats and gives every boater an economical, equally durable alternative to stainless. Each tab uses an extremely strong "no-break" polypropylene hinge, tested over 300,000 cycles to a 90° bend without failure, and the precision-engineered actuator delivers quiet, non-hydraulic, maintenance-free operation with no oil to leak and nothing to install inside the boat. Control switch is not included, so this is a good fit if you're pairing it with an existing control or one of Lectrotab's controls sold separately. Browse more options in our trim tabs and trim systems category.

Key Features

• suited to 18' to 29' boats
• marine-grade 6005-T5 aluminum alloy
• sealed with a corrosion-resistant epoxy coating
• 12V actuators rated to push 1000 lbs of force
• internal pressure equalization and brake system prevents unwanted movement
• sealed non-metallic actuator housing
• In The Box: Two (2) actuators with 23' (7 m) cables, instruction manual, sold as a set
• Actuator Cable Length: 23 ft
• Control Included: No

Additional Details: Weight: 14.1 lb.

Frequently Asked Questions

What boat length is this trim tab set built for? 18' to 29' boats.

Does this include a control switch? No, this is a bare tab and actuator set — a control switch is not included.

What material are these tabs made from? marine-grade 6005-T5 aluminum alloy, sealed with a corrosion-resistant epoxy coating.
