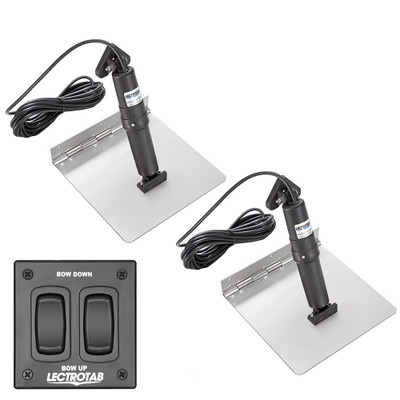

Lectrotab 12 x 12 Stainless Steel Rocker Trim Tab Kit

The Lectrotab 12 x 12 Stainless Steel Rocker Trim Tab Kit is an electric trim tab system built around 12" x 12" 12-gauge 304 stainless steel planes and self-contained Lectrotab actuators. It gives the operator controllable stern lift for reducing bow rise, correcting side-to-side list, and fine-tuning the hull as passenger placement, gear, fuel load, speed, and water conditions change.

Lectrotab actuators are permanently sealed in non-metallic housings and operate without a hydraulic pump, reservoir, or oil lines. Internal pressure equalization and an actuator brake help provide accurate positioning while resisting unwanted tab movement underway or while backing down. The included sealed rocker control gives the operator direct port and starboard adjustment from the helm.

The 12" x 12" plane size provides a defined working surface for the actuators, while the 12-gauge 304 stainless steel construction is selected for demanding marine exposure. The package is intended for a properly matched transom installation, so available mounting space, hull geometry, actuator clearance, and electrical routing should be confirmed before installation. There is more in our trim tabs and trim systems.

• Independent tab movement lets the operator adjust running attitude as passengers, gear, and conditions change.
• Self-contained electric actuators provide powered tab movement without hydraulic plumbing.
• The internal brake system helps prevent unwanted actuator movement while underway or backing down.
• The 12-gauge 304 stainless steel planes are designed for repeated marine use and hydrodynamic loading.
• The included helm switch provides a straightforward interface for port and starboard trim corrections.
